3000FX 涂层测厚仪


Checkline DCF-3000FX - Measures Coatings on Ferrous (magnetic metal) Only
Check-Line DCN-3000FX - Measures Coatings on Non-Ferrous (non-magnetic metal) Only
Checkline DCFN-3000FX - Combination Model, Measures Coatings on both Ferrous and Non-Ferrous metal

The Check-Line 3000FX Series coating thickness gauge is a multifunctional, menu driven gauge for fast, professional and precise coating thickness measurement for paint and non-magnetic coatings on steel and iron as well as paint and anodizing coatings on non-ferrous metals. All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear.

A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts.


  • The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques

  • The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals

  • Data transfer to a printer or PC takes place via an infra-red interface

  • Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading.

  • The 3000FX Series identifies the substrate and activates the appropriate measuring procedure.

  • Menu in a choice of three languages ensures ease of operation

  • The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces.

  • Two optional high temperature footers for measuring on surfaces up to 150 °C/302 °F or up to 300 °C/572 °F

  • Traceable Certificate Included at no additional cost

  • 1 Year Warranty

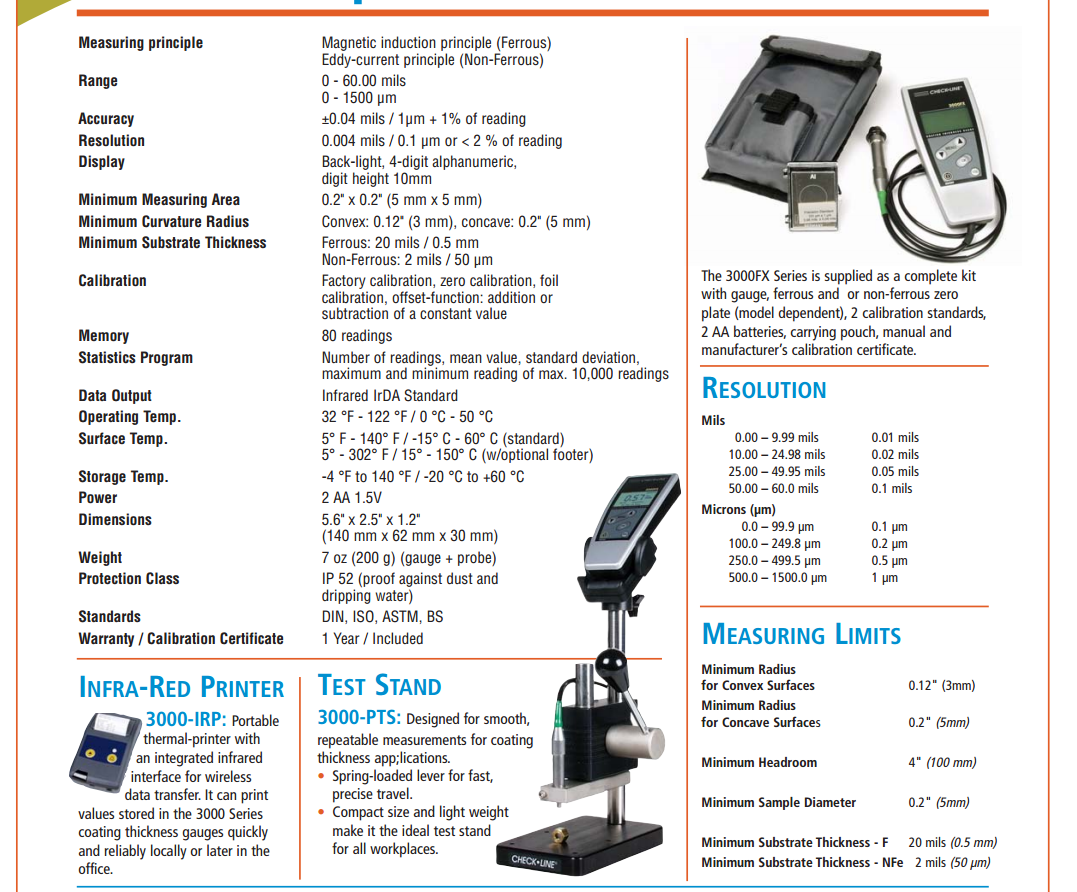

Measuring   principle:

magnetic induction principle (Ferrous)
  eddy-current principle (Non-Ferrous)

Range

0 - 60.00 mils
  0 - 1500 µm

Accuracy

±0.04 mils / 1µm + 1% of reading

Resolution

Refer to RESOLUTION TABLE, above

Display

back-light, 4-digit alphanumeric, digit   height 10mm

Minimum Measuring   Area

0.2" x 0.2" (5 mm x 5 mm)

Minimum   Curvature Radius

convex: 0.12" (3 mm), concave:   0.2" (5 mm)

Minimum   Substrate Thickness

Ferrous: 20 mils / 0.5 mm
  Non-Ferrous: 2 mils / 50 µm

Calibration

factory calibration, zero calibration,   foil calibration, offset-function: addition or subtraction of a constant   value

Memory

80 readings

Statistics   Program

Number of readings, mean value, standard   deviation, maximum and minimum reading of max. 10,000 readings

Data Output

Infrared IrDA Standard

Operating Temp.

32 °F - 122 °F / 0 °C - 50 °C

Surface Temp.

5° F - 140° F / -15° C - 60° C (standard)
  5° - 302° F / 15° - 150° C (w/3000-HTF)
  5° - 572° F / 15° - 300° C (w/3000-HTF-300C)

Storage Temp.

-4 °F to 140 °F / -20 °C to +60 °C

Power

2 AA 1.5V

Dimensions

5.6" x 2.5" x 1.2" (140 mm   x 62 mm x 30 mm)

Weight

7 oz (200 g) (gauge + probe)

Protection   Class

IP 52 (proof against dust and dripping   water)

Standards

DIN, ISO, ASTM, BS

Warranty

1 Year

Calibration   Certificate

Included


订货清单

The 3000FX Series is supplied as a complete kit with gauge, ferrous and or non-ferrous zero plate(model dependent), 2 calibration standards, 2 AA batteries, hard carrying case, instruction manual and calibration certificate.



配件

3000-HTF   High Temp Footer

3000-HTF-300C  Extra Hi-Temp Footer (572°F/300°C)

3000-PTS   Coating Thickness Gauge Stand

3000-IRP   3000-IRP Infra-Red Printer

3000-IR-USB    3000-IR-USB Infrared Adapter for Data Transfer to PC via USB



订货型号

DCF-3000FX DCF-3000FX Ferrous Only Model Complete Kit

DCN-3000FX DCN-3000FX Non-Ferrous Only Model Complete Kit

DCFN-3000FX    DCFN-3000FX Combination Ferrous and Non-Ferrous Model Complete Kit
