转速计，又名转速表、转速仪，是机械行业必备的仪器之一，用来测定电机的转速、线速度或频率。常用于电机、电扇、造纸、塑料、化纤、纺织、汽车、飞机、轮船等制造业。 大多常用的为手持离心式转速计。
转速计，又名转速表、转速仪，是机械行业必备的仪器之一，用来测定电机的转速、线速度或频率。常用于电机、电扇、造纸、塑料、化纤、纺织、汽车、飞机、轮船等制造业。 大多常用的为手持离心式转速计。美国Checkline旗下的转速计一般为数字式，有接触式和非接触式两种测量。非接触式采用光电器件测量，无连接轴，对被测件无任何影响，提高测量精度。
例如Checkline CDT-1000HD型转速计，利用光束照射贴在被测单元的反光带上，精准测量转速，其照射测量距离最远达60cm。如果要兼有接触式与非接触式功能的转速计，可选用Checkline CDT-2000HD型。

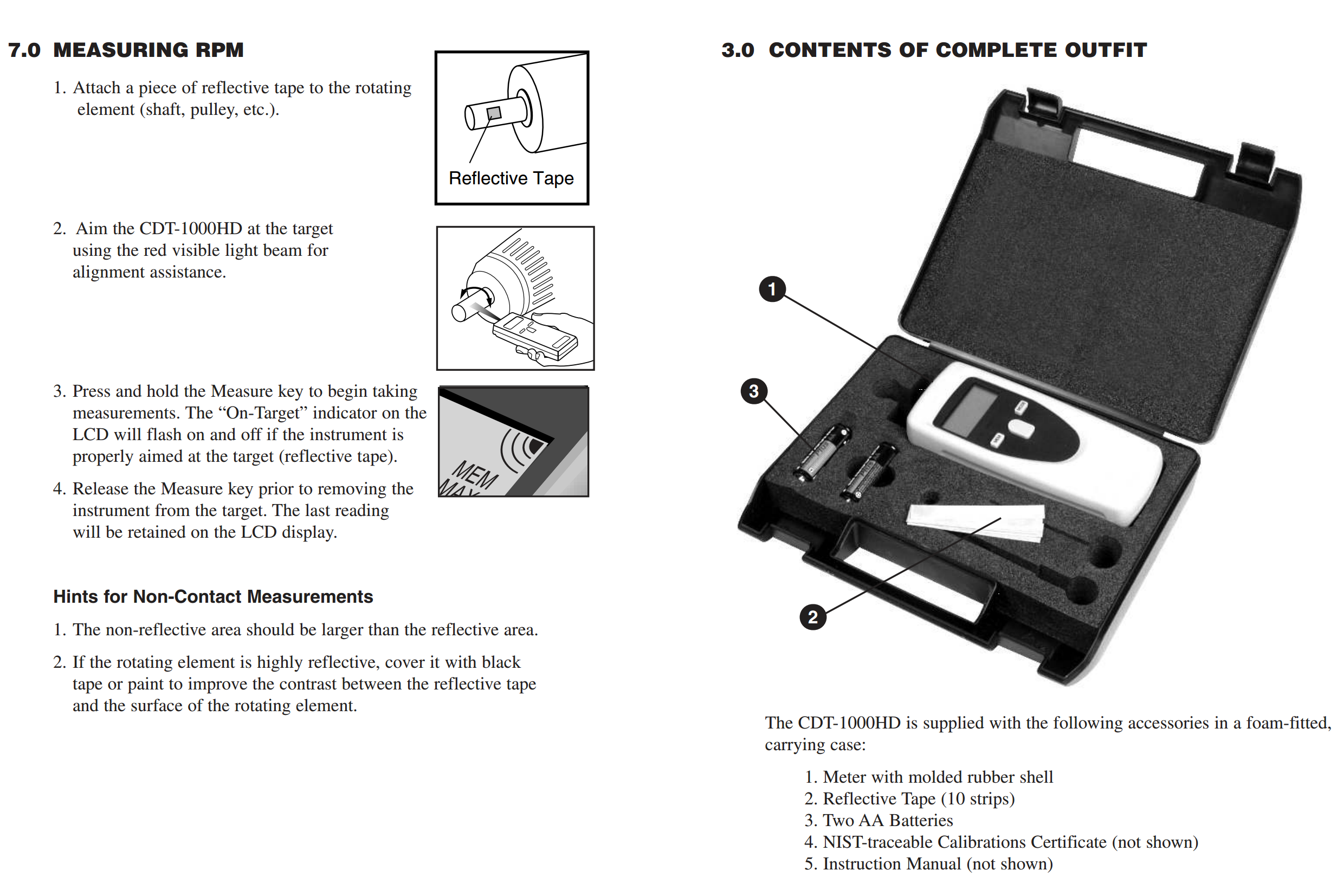

The CHECK-LINE CDT-1000HD Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element.
5 year warranty The Checkline CDT-1000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.
A combination Contact & Non-Contact model, the Checkline CDT-2000HD
Measures speeds from as low as 1.00 rpm up to 99,999 rpm
Built-in memory stores maximum, minimum, average and last reading for recall to the display
Accuracy of 0.02% with a resolution of 0.01 RPM
NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection
Includes Traceable calibration Certificate
Measuring Range | 1.00 - 99,999 rpm |
Resolution | .01 from 0 - 100 |
Accuracy | ± 0.02% of reading or 0.01 digit (under 50) |
Display | 5 - Digit LCD, 10mm high |
Decimal Point | Automatic |
Memory System | Maximum, minimum, and last reading (retained in memory for the life of the batteries) |
Measurement System | Visible LED light beam |
Sensing Distance | Up to 24 inches (60 cm) |
Display Update Time | 0.5 seconds or one measuring |
Auto Power Off | After 30 seconds of non-use (minimum, maximum and last reading retained in memory) |
Battery Life | 40 hours continuous use |
Battery | 2 AA (1.5 V) or rechargeable |
Weight | 6 ounces (170 grams) |
Housing Material | ABS Plastic housing with removable protective rubber shell |
Operating Temperature | 32 to 122° F (0 to 50° C) |
Storage Temperature | -4 to 150° F (-20 to 70° C) |
Accessories included | 10 Strips of 1/2 x 4 inch reflective tape |
Warranty | 5 years |
Calibration Certificate | Included |
配件
CDT-TAPE 10 Strips of 1/2 x 4 inch reflective tape
205TS Reflective Tab Sheet, 35 1/2" x 1/2" Squares
205TS-4 Qty 4 Reflective Tab Sheet, 35 1/2" x 1/2" Squares
BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit
订货清单
The CDT-1000HD complete kit includes the Tachometer, Reflective Tape, Two (2) AA Batteries (1.5 V), Operating Instruction Manual and Traceable certificate -- all supplied in a foam-fitted, hard-plastic Carrying Case.
订货型号
CDT-1000HD Non-Contact Tachometer Complete kit
