FGE 测力计


8 Ranges up to 100lbs

Measures Push / Pull Force



Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications. The Series Check-Line FGE-X Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.



Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the Checkline FGE-X to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 100 lb ranges providing a large offering for various testing requirements.



Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.


  • Display "real-time" or "peak" force

  • Accuracy ± 0.2%

  • 200% overload protection

  • User-selected units of Pounds, Kilograms or Newtons

  • Display can be reversed for inverted use

  • Includes Traceable Calibration Certificate

  • 1 Year Warranty


Accuracy

±0.2% full scale

Display

4-Digit LCD, 12mm high. Reversible by the   push of a button. Minus sign for tension

Display Update

0.05, 0.1, 0.2, 0.3, 0.5, 1 sec

Sampling Rate

1000 times per second

Overload   Protection

200% of full scale

Power

Rechargeable Ni-Cad battery or AC through   adapter/charger

Auto Power   Shut-Off

Yes (not active if adapter/charge is in   use)

Battery Life

12 hours (when fully charged)

Recharge Time

Approximately 18 hours when fully   discharged

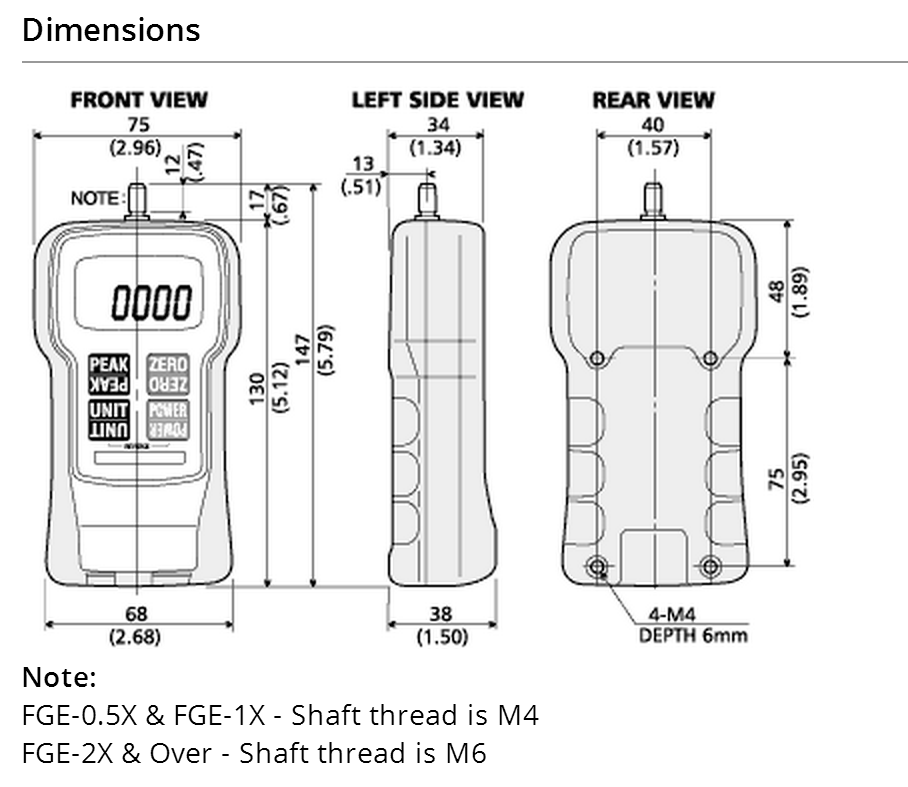

Dimensions

5.1" L x 2.9" W x 1.5" H   (130 mm x 75 mm x 38 mm)

Weight

1 lb (450 g)

Approvals

CE approved

Warranty

2 Years


订货清单

Includes Force Gauge, Universal 100-240V AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head & extension rod in a foam fitted carrying case



配件

FG-HANDLE   Handle FGV-XY Force Gauge

BATT-FGEX   Spare / Replacement Internal Rechargeable NiCad Battery - BFGG0200511

FG-09V120UC Spare / Replacement Power Adapter

FG-M6ADP    Std. Steel Adapter Set, M6 Thread (Includes Chisel, Cone, Flat Head, Notched, Hook, Extension Rod) - For use with 2 - 20 lb force gauges

FG-M6ADP-AL Std. Aluminum Adapter Set, M6 Thread (Includes Chisel, Cone, Flat Head, Notched, Hook, Extension Rod) - For use with 2 - 200 lb force gauges



订货型号

FGE-0.5X    Order FGE-0.5XY

FGE-1X FGE Digital Force Gauge Complete Kit, 16 oz Capacity

FGE-2X FGE Digital Force Gauge Complete Kit, 2 lb Capacity

FGE-5X FGE Digital Force Gauge Complete Kit, 5 lb Capacity

FGE-10X FGE Digital Force Gauge Complete Kit, 10 lb Capacity

FGE-20X Order FGE-20XY

FGE-50X FGE Digital Force Gauge Complete Kit, 50 lb Capacity

FGE-100X    FGE Digital Force Gauge Complete Kit, 100 lb Capacity


相关型号

Series-2

Series-3

Series-4

Series-5

Series-7

ZT-Series

FGE-XY

DS2

FGV-XY

FGE-HX

FGV-HX
