Series 2 测力计


Checkline Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.



Check-Line M2 The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments.


  • Calculates peak tension and compression values

  • Supplied with certificate of conformance. NIST calibration cert with data optional

  • 500 Hz sampling rate

  • Powered by 9V battery or available AC adapter

  • 3 selectable units of measurement

  • Configurable default measurement unit and mode

  • Large, backlit graphic display with auto-dimming

  • Reversible housing for alternate load cell orientation


Accuracy

±0.5% of full scale

Sampling Rate

500 Hz

Power

AC or 9V non-rechargeable battery, with   multi-step low battery indicator

Battery Life

Backlight on: up   to 24 hours of continuous use
  Backlight off: up to 92 hours of continuous use

Measurement   Units

lbF, kgF, N

Safe Overload

150% of full scale (display shows   "OVER" at 110% and above)

Weight

0.7 lb [330 g] - models M2-2 thru M2-100
  0.9 lb [410 g] - models M2-200 – M2-500

Included   Accessories

9V battery, quick-start guide, resource   CD, certificate of conformance

Environmental   requirements

40 - 100°F, max. 96% humidity,   non-condensating

Warrany

3 years

Load Cell   Thread

#10-32 UNF - models M2-2 thru M2-100
  5/16-18 UNC - models M2-200 – M2-500


配件

12-1049 M2 Force Gauge Carrying case

AC1030  AC adapter for M2 force gauge with USA Plug

AC1031  AC adapter for M2 force gauge with Euro Plug

AC1032  AC adapter for M2 force gauge with UK Plug

AC1035  AC adapter for M2 force gauge with AUS Plug

CERT    Certificate of calibration with data

G1038  Medium hook, #10-32M (requires G1039)

G1039   Coupler, #10-32F to #10-32F

G1029   Flat head, #10-32F

G1026   Cone, #10-32F

G1025   Chisel point, #10-32F

G1027   V-groove, #10-32F

G1024   Extension rod, 5", #10-32F

23-1031-2   Attachment kit for M2-2 - 2-100

23-1031-3   Attachment kit for M2-200 - M2-500


型号

量程

分辨率

型号

量程

分辨率

M2-2

2 lbF
  1 kgF
  10 N

0.002 lbF
  0.001 kgF
  0.01 N

M2-5

5 lbF
  2.5 kgF
  25 N

0.005 lbF
  0.002 kgF
  0.02 N

M2-10

10 lbF
  5 kgF
  50 N

0.01 lbF
  0.005 kgF
  0.05 N

M2-20

20 lbF
  10 kgF
  100 N

0.02 lbF
  0.01 kgF
  0.2 N

M2-50

50 lbF
  25 kgF
  250 N

0.05 lbF
  0.02 kgF
  0.2 N

M2-100

100 lbF
  50 kgF
  500 N

0.1 lbF
  0.05 kgF
  0.5 N

M2-200

200 lbF
  100 kgF
  1000 N

0.2 lbF
  0.1 kgF
  1 N

M2-500

500 lbF
  250 kgF
  2500 N

0.5 lbF
  0.2 kgF
  2 N



相关型号

Series-3

Series-4

Series-5

Series-7

ZT-Series

FGE-XY

DS2

FGV-XY

FGV-HXY

FGE-HX

FGV-HX

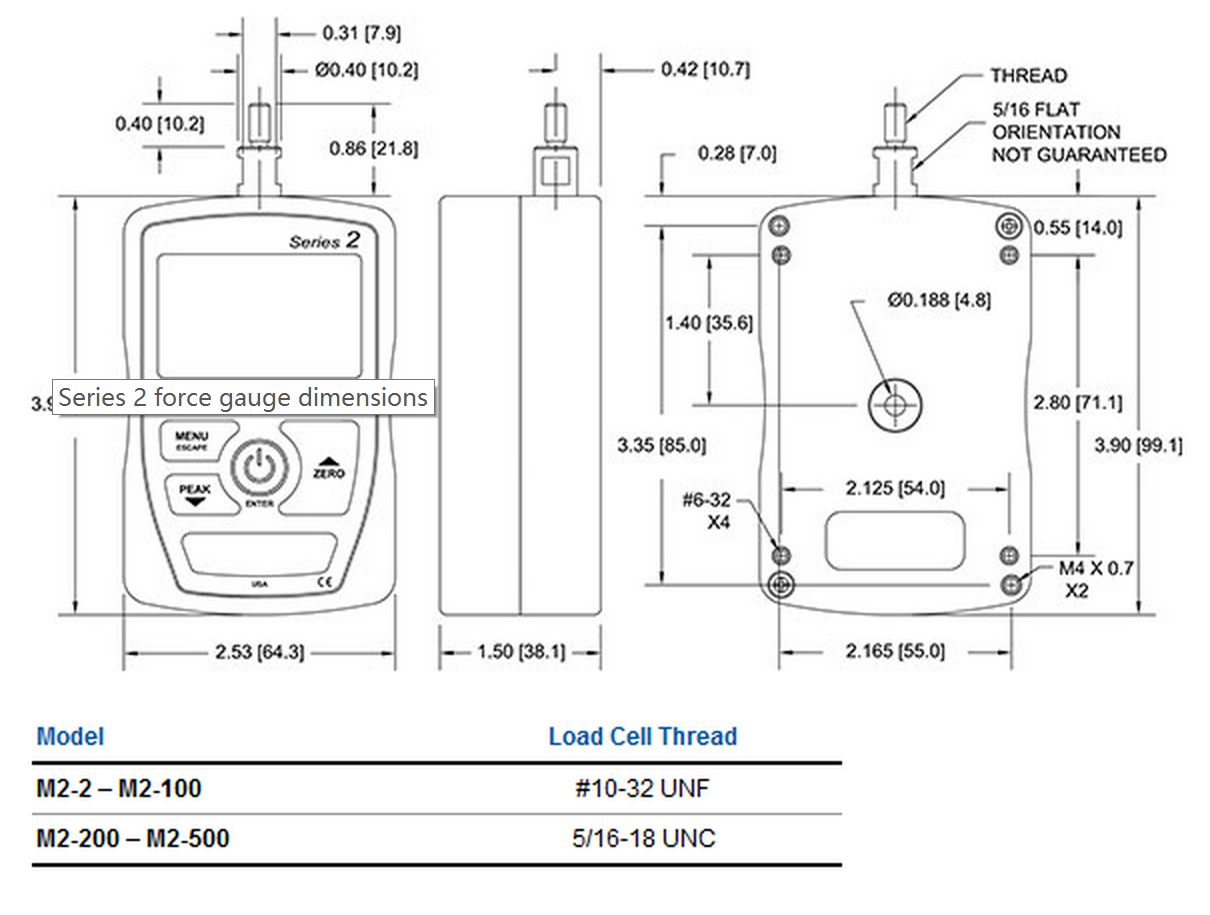

M2 01.png
