TI-25M-MMX 超声波测厚仪


Measuring Range in Steel

Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters)

Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters)

(range depends upon probe selected)

5 year warrantyThe new CHECK-LINE TI-25M-MMX Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!



Checkline TI-25M-MMX can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.



The TI-25M-MMX probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.


  • Ability to measure through paint and eliminate coatings

  • Resolution of 0.001 inch (0.01 mm)

  • Large, backlit LCD display retains last reading

  • CE-Certified

  • Special-purpose probes are offered for a variety of applications

  • Switch-selected units for inches or mm

  • For underwater surveying, probe cable lengths up to 50 feet are optionally

  • RS-232 output to transfer individual data values

  • Includes NIST-Traceable Calibration Certificate

  • IP 65 Rated


Range

Pulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 6.000 (up to   19.999 inches if uncoated using T-102-2000 probe)
  0.63 to 150 millimeters (up to 500 mm if uncoated using T-102-2000 probe).To   measure down to 0.025"/1.00mm, requires use of T-102-3300 Probe
  <="" td="">

Resolution

.001" (0.01 mm)

Display

4½ - Digit, 0.5" Backlit LCD

Velocity Range

0.0492 to .3937 in/μs. 1250 to 10,000   meters/sec

Probe

5 MHz, 0.25" Diameter (6.35 mm)

Probe Wearface

PEEK (Polyethlethylketone)

Cable

4 ft. (1.2 m) waterproof cable with   non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15   m).

Output

RS-232, single value when send key is   pressed

Temp. Limits

Ambient: -20 to 120° F (-30 to 50° C)
  Material: 0 to 200° F (-20 to 100° C) Special high temperature probes   are optionally available

Battery Type

Two AA batteries

Battery Life

200 hours

Weight

7 ounces (196 g)

Size

2.5 x 4.5 x 1.25"
  (64 x 114 x 32 mm)

Accessories   Included

Probe/cable assembly. 4 oz. bottle of   coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating   instructions, hard-plastic carrying case.

Warranty

Gauge:   5 Years
Probes:  90 Days


订货清单

The TI-25M-MMX is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.



配件

TICC-M  Protective Holder for Most TI Series Gauges

CF12    Coupling Fluid - 12oz

V-Block V-Block Transducer Holder (For 3/16" & 1/4" Transducers only)

T-102-2700  1/4" diameter, 5.00 MHz, dual element, Hi-Damped transducer

T-104-9700  1/2" diameter, 3.5 MHz, dual element, Hi-Damped transducer

T-212-2001  1/4", 5 MHz Hi-Temp (900 F / 500 C) Transducer

N-306-0010  6 foot RS232 Cable (DB-9 to Lemo 2 pin)



订货型号

TI-25M-MMX Through-Paint Ultrasonic Thickness Gauge Kit with T-102-2700 Probe

TI-25M-MMX-EXT Through-Paint Ultrasonic Thickness Gauge Kit with T-104-9700 Probe

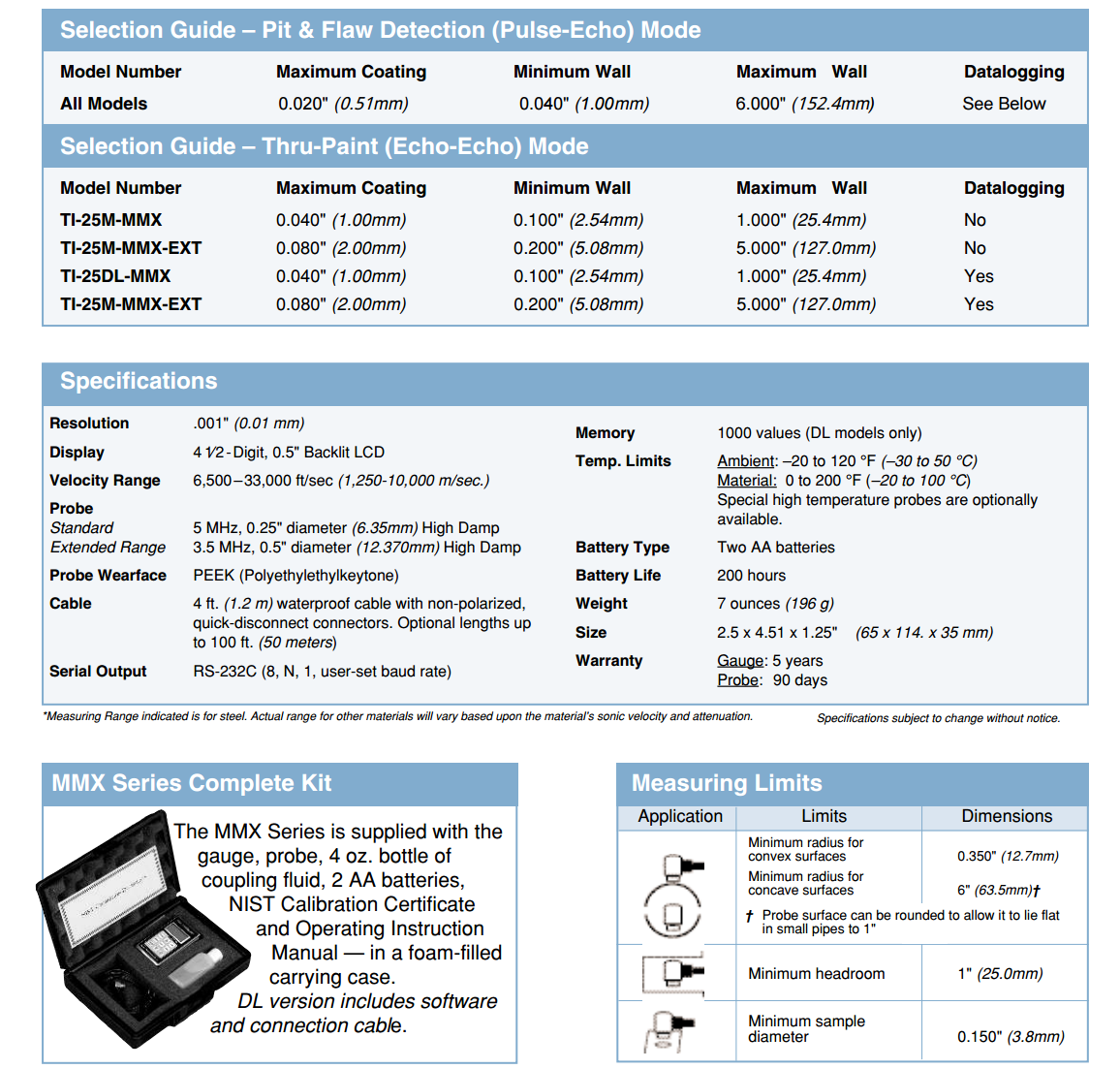

TI-25M-MMX 01.png
