At CTC, we manufacture a complete line of accelerometers for use in harsh environments. CTC accelerometers feature all welded construction with hermetically sealed glass to metal connectors or an integral cable, to ensure survivability in coolants, caustic spray or submersible applications. CTC accelerometers are supplied with a NIST traceable calibration certificate from our ISO 9001:2008 certified factory.
CTC AC102 accelerometers are guaranteed for life. If any CTC accelerometer ever fails, call one of our customer service representatives to request a Return Merchandise Authorization number, and send it back for a repair or replacement.
Standard 2 Pin MIL Connection
Perfect for Thousands of Applications
Affordably Priced, Hermetically Sealed Sensors

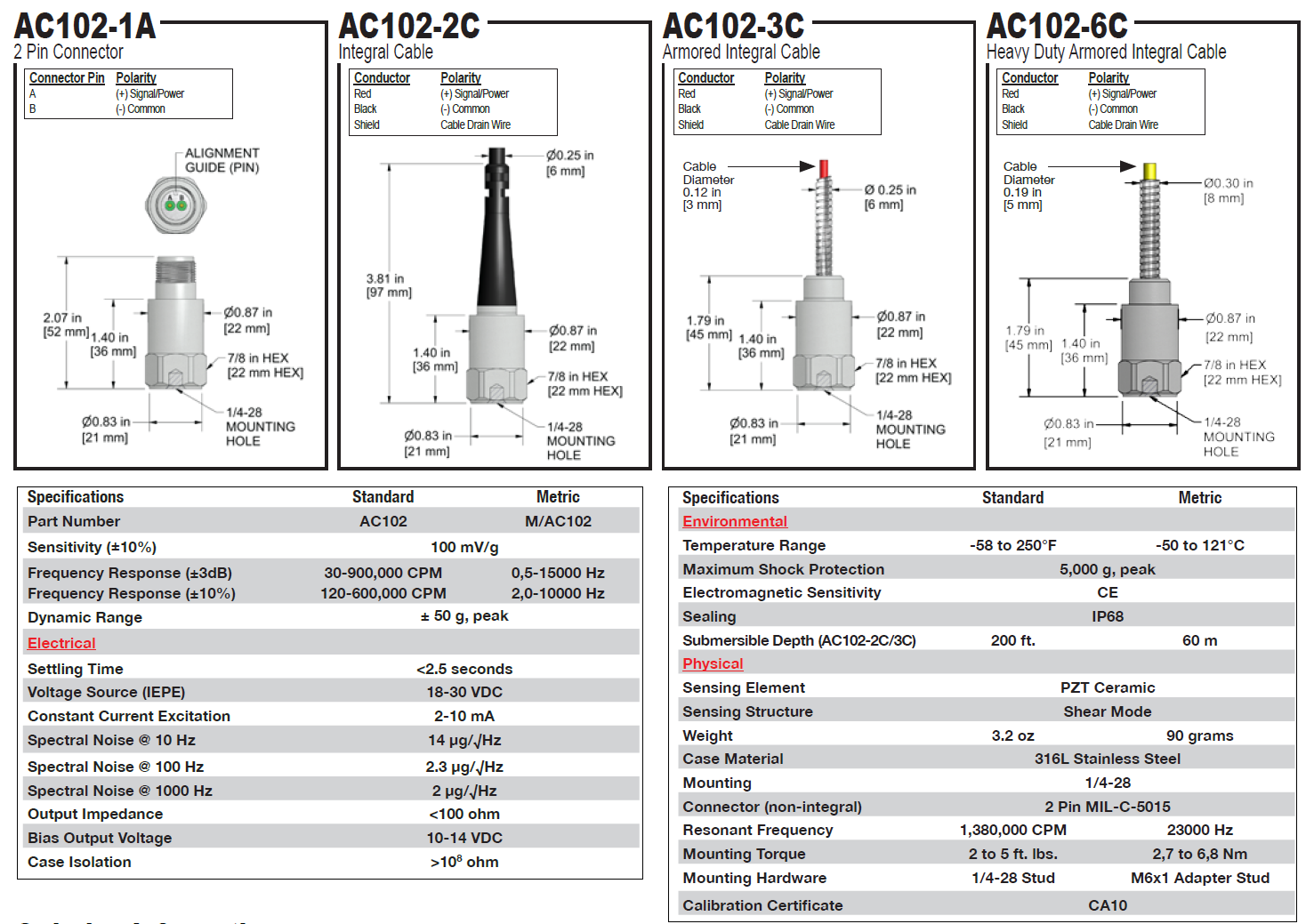

Specifications Standard Metric Part Number AC102 M/AC102 Sensitivity (±10%) 100 mV/g Frequency Response (±3dB) Frequency Response (±10%) 30-900,000 CPM 120-600,000 CPM 0,5-15000 Hz 2,0-10000 Hz Dynamic Range ± 50 g, peak Electrical Settling Time <2.5 seconds Voltage Source (IEPE) 18-30 VDC Constant Current Excitation 2-10 mA Spectral Noise @ 10 Hz 14 μg/√Hz Spectral Noise @ 100 Hz 2.3 μg/√Hz Spectral Noise @ 1000 Hz 2 μg/√Hz Output Impedance <100 ohm Bias Output Voltage 10-14 VDC Case Isolation >108 ohm
| Specifications Standard Metric Environmental Temperature Range -58 to 250°F -50 to 121°C Maximum Shock Protection 5,000 g, peak Electromagnetic Sensitivity CE Sealing IP68 Submersible Depth (AC102-2C/3C) 200 ft. 60 m Physical Sensing Element PZT Ceramic Sensing Structure Shear Mode Weight 3.2 oz 90 grams Case Material 316L Stainless Steel Mounting 1/4-28 Connector (non-integral) 2 Pin MIL-C-5015 Resonant Frequency 1,380,000 CPM 23000 Hz Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm Mounting Hardware 1/4-28 Stud M6x1 Adapter Stud Calibration Certificate CA10 |
订货型号
AC102-1A AC102-2C AC102-3C AC102-6C | M/AC102-1A M/AC102-2C M/AC102-3C M/AC102-6C |
相关型号
AC104 AC116 AC150 AC154 AC184 AC210 AC211 | AC216 AC146 AC246 AC162 AC165 AC166 |
