The ECONseries is a flexible yet economical series of multifunction data acquisition modules. You choose the number of analog I/O and digital I/O channels, the resolution you need, and the signal range of your application.
DT9814-10V provides 24 channels. The Data Translation DT9816 modules provide 6 separate 16-bit analog converters for simultaneous acquisition of up to 6 single-ended analog inputs.
The DT9810 provides 10-bit resolution, while the DT9812-2.5V, DT9812-10V, DT9813-10V, and the DT9814-10V provide 12-bit resolution. For maximum resolution, the DT9816 modules provide 16-bit resolution.
DT9810 and DT9812-2.5V modules feature a full-scale input signal range of 0 to 2.44 V. If you need a full-scale input signal range of ±10 V, the DT9812-10V, DT9813-10V, DT9814-10V, DT9816, DT9816-A, and DT9816-S are available. The DT9816 modules also feature a full-scale input signal range of ± 5 V.
The DT9812-2.5V provides gains of 1, 2, 4, 8, and 16; the DT9812-10V, DT9813-10V, and DT9814-10V provides programmable gains of 1, 2, 4, and 8; and the DT9816 modules provide gains of 1 and 2.
Gain | DT9812-2.5V | DT9812-10V DT9813-10V DT9814-10V | DT9816 |
1 | 0 to 2.44 V | ±10V | ±10V |
2 | 0 to 1.22 V | ±5 V | ±5 V |
4 | 0 to 0.61 V | ± 2.5 V | — |
8 | 0 to 0.305 V | ± 1.25 V | — |
16 | 0 to 0.1525 V | — | — |
6通道同步输入，每通道采样率可选：50kHz, 150kHz, 750kHz
16 位分辨率
同步时间在1 纳秒范围内
16 通道数字I/O

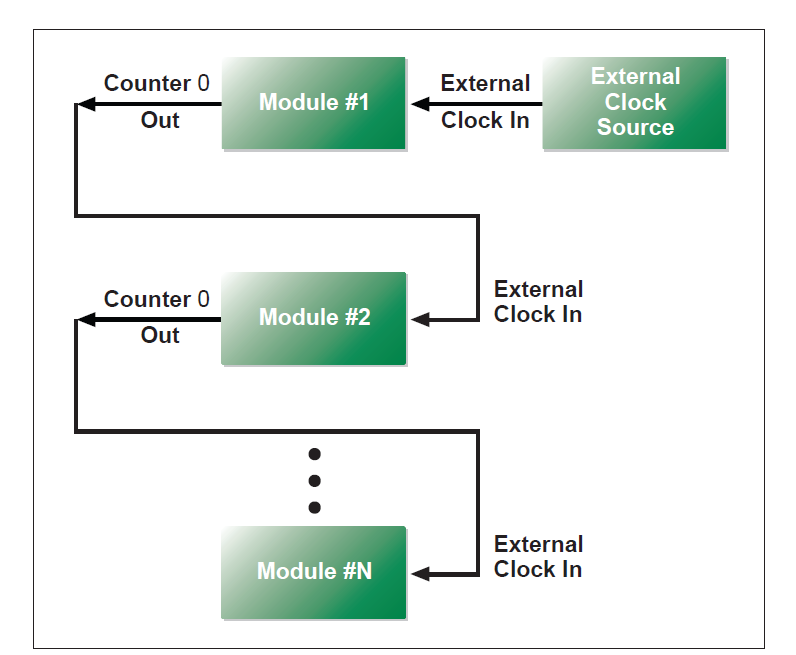

可利用外部触发和时钟达到同步多个模块
无需外接电源，USB供电
附送QuickDAQ应用型软件，可马上开始测量
1 通道计数器/定时器
兼容LabVIEW™ 和MATLAB®
■ DT9810
■ DT9812-2.5V
■ DT9812-10V
■ DT9812-10V-OEM
■ DT9813 -10V
■ DT9814 -10V
■ DT9816
■ DT9816-A
■ DT9816-S
■ DT9817
■ DT9817-H
■ DT9817-R
配件
■ DIN Mount Kit
系统配置需求
■ Windows XP, Windows Vista, or Windows 7
■ Available USB Port(s) (2.0 or 1.1)
■ CD-ROM drive
可选软件
■ Measure Foundry – Test and measurement application builder. SP1300-CD.
■ quickDAQ – High-performance, ready-to-run application that lets you acquire, plot, analyze, and save data to disk at up to 2 MHz per channel. SP8501-CD
■ LV-Link – Access the power of Data Translation boards through LabVIEW.
免费软件
■ DAQ Adaptor for MATLAB – Access the analyzation and visualization tools of MATLAB.
订货型号
DT9816 | Low Cost, Simultaneous USB Data Acquisition (DAQ) Module, 16-bit, 50kHz per channel, 6 AI, 16 DIO, 1 C/T |
DT9816-A | Low Cost, Simultaneous USB Data Acquisition (DAQ) Module, 16-bit, 150kHz per channel, 6 AI, 16 DIO, 1 C/T |
DT9816-S | Low Cost, Simultaneous USB Data Acquisition (DAQ) Module, 16-bit, 750kHz per channel, 6 AI, 16 DIO, 1 C/T |
相关型号
模块 | 子系统 | 分辨率/流量 | 完整数据流量 | 模拟信号输入 | 波形模拟信号输出 | 内/外置时钟&触发器 | 满载电源 |
DT9810 | 8 AI, 20 DIO, 1 C/T | 10-bits @ 25 kS/s aggregate | Up to 25 kS/s | 0 to 2.44 V | --- | No/Yes | USB <100 mA |
DT9812-2.5v | 8 AI, 2 AO, 16 DIO, 1 C/T | 12-bits @ 50 kS/s aggregate | Up to 50 kS/s | 0 to 2.44V, 1.22V, 0.61V, 0.305V, 0.1525V | 0 to 2.44 V | Yes/Yes | USB <100 mA |
DT9812-10V DT9812-10V-OEM | ±10V, 5V, 2.5V,1.25V | ±10 V | USB <175 mA | ||||
DT9813-10V | 16 AI, 2 AO, 8 DIO, 1 C/T | 12-bits @ 50 kS/s aggregate | Up to 50 kS/s | ±10V, 5V, 2.5V,1.25V | ±10 V | Yes/Yes | USB <175 mA |
DT9814-10V | 24 AI, 2 AO, 1 C/T | 12-bits @ 50 kS/s aggregate | Up to 50 kS/s | ±10V, 5V, 2.5V,1.25V | ±10 V | Yes/Yes | USB <175 mA |
DT9816 | 6 SAI, 16 DIO, 1 C/T | 16-bits @ 50 kS/s per channel | Up to 50 kS/s | ±10V, ±5V | --- | Yes/Yes | USB <200 mA |
DT9816-A | 16-bits @ 150 kS/s per channel | Up to 50 kS/s | |||||
DT9816-S | 16-bits @ 750 kS/s per channel | Up to 50 kS/s | |||||
DT9817 | 28 DIO, 1 C/T, Sink = 10mA, Source = 4.5 mA | --- | Yes | --- | --- | --- | USB <500 mA |
DT9817-H | 28 DIO, 1 C/T, Sink = 64mA, Source = 15 mA | ||||||
DT9817-R 完全独立 | 16 DIO, 1 C/T; Switches up to ±30V @ 400 mA |
