HS-535振动变送器


英国Hansford HS-530型是一款4通道输出的振动模块,与100mV/g恒定电流型加速度传感器配套使用,用于振动监测与分析。HS-530外形紧凑,导轨式安装在塑料外壳里,工作电压:24VDC, 25mA.

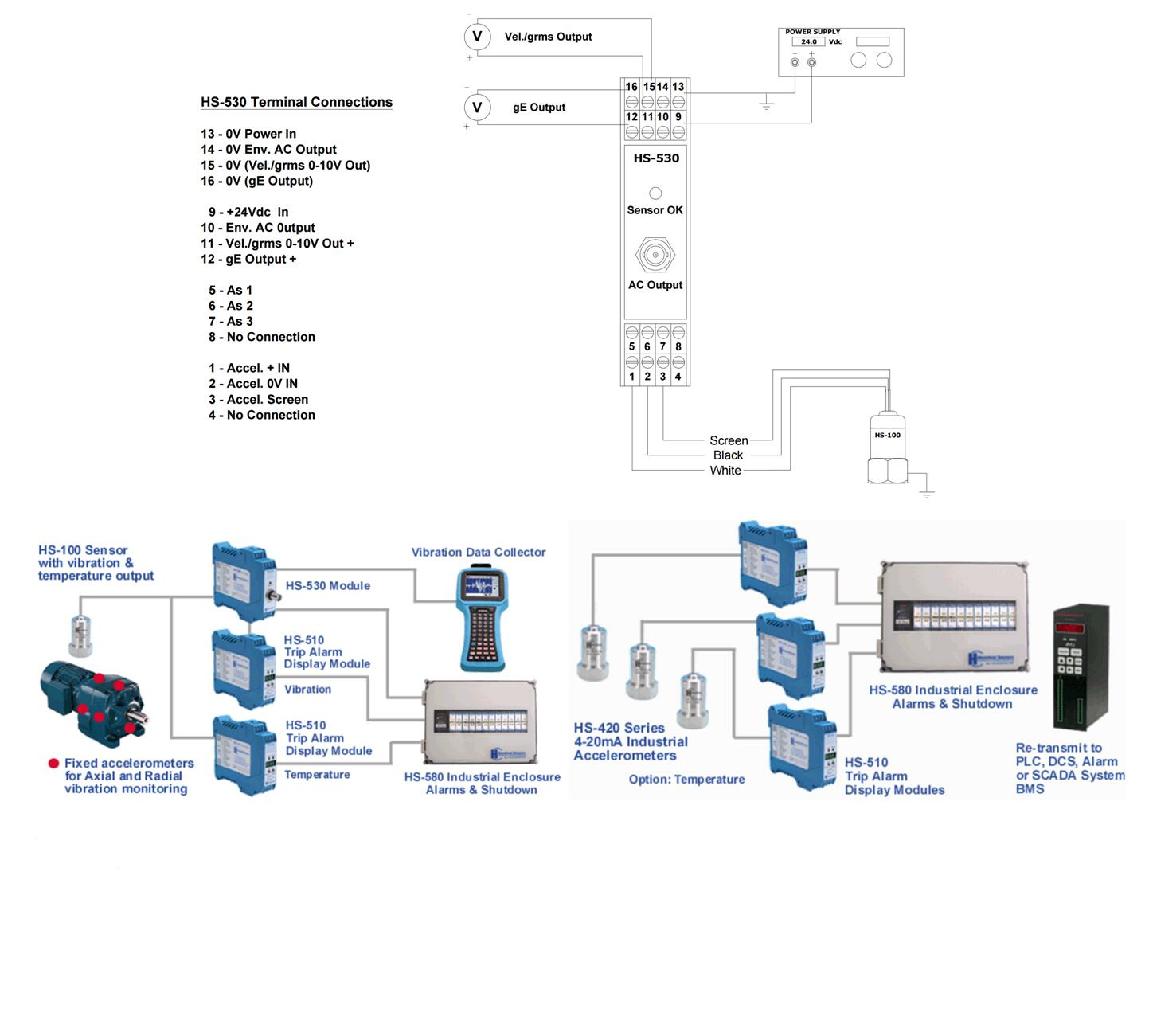

The HS-530 Quad Output Vibration Module is designed to operate with 100mV/g constant current type accelerometers to provide four outputs useful in vibration monitoring and analysis. The unit is housed in a compact DIN-Rail mounting plastic case and operates from 24VDC at 25mA. Terminal connections are shown in Fig.1.overleaf.



供电加速度传感器

HS-530能够给加速度传感器提供3.6mA的恒定电流,这样传感器只需要直接连接振动模块的输入端口。

Accelerometer Power. The HS-530 provides a 3.6mA constant current supply to an accelerometer which connects directly to the module input terminals.



LED状态指示

当传感器与模块连接成功后,模块前面板上会亮起绿色LED灯;当连接错误或者电线短路时,LED不会亮起。这样可以有效避免因输入信号造成的问题,0-10V输出会被设定为0V。

TDX OK LED. A green LED on the front of the unit indicates correct connection of the accelerometer. The LED will not light if input wiring short or open-circuits are present. To prevent problems due to spurious input signals, both 0-10V outputs are set to 0V if the TDX OK LED is not lit.



AC输出



模块通过前面板的BNC连接器,输出一个与加速度型号成比例的带缓冲未过滤AC信号。当数据采集器监测输入信号,进行振动分析,那么该信号必须是AC输入信号,并给传感器供电。

AC Output. A buffered, but un-filtered AC output proportional to the acceleration signal is provided via a BNC connector mounted on the front panel. The 100mV/g signal is not AC coupled and swings about the accelerometer bias voltage level. If a data-collector is used to monitor this signal for vibration analysis, it must set for AC input and have its sensor power function turned off.



速度输出



HS-535也可以输出一个0-10V信号,与RMS速度(mm/s)对应。模块信号调理仪拥有高低通滤波功能,对测量带宽进行限制,限制范围:10Hz - 1kHz,符合旋转电机振动幅度ISO 10816标准。0-10V标准输出范围:0-20 mm/s,加速度版本的输出为 g rms。

Velocity Output. This is a 0-10V output proportional to rms velocity in mm/s. The signal conditioner has high and low pass filters to limit the measurement bandwidth to 10Hz to 1kHz as defined in ISO 10816 which lists recommended vibration limits for rotating machines. The output range is set at the factory at 0-10V = 0-20mm/s as standard. For acceleration versions, this output is 0- 10V proportional to g rms.



加速度g输出

0-10V输出可检测球或滚子轴承的问题,该型号可转换成对应的轴转速。输入电路带宽为500Hz-10kHz,出厂标准输出范围为0-10V-0-10gE。

Enveloped g Output. This 0-10V output is useful for detecting problems in ball or roller bearings where signals from high frequency impacts are masked by the lower frequency vibrations proportional to shaft rotational speed. The enveloper input circuit bandwidth is 500Hz to 10KHz and the output range is set at the factory 0-10V =0-10gE as standard.



AC包络线输出

AC包络线输出是包络检波电路产生的缓冲AC输出,9VDC的震荡基准。100mV/g的输出信号可直接传输至数据采集产品,进行振动分析。

6. AC Envelope Output. This is a buffered AC output from the enveloper circuit which swings about a 9VDC reference level. The 100mV/g signal can be used for vibration analysis via a Data-Collector.


  • Converts AC input to multiple outputs

    转换AC输入信号为多重输出信号

  • Din Rail Mounted

    轨道式安装

  • TDX OK Function

    状态显示功能

  • RMS Velocity Output

    RMS速度输出

  • Peak ‘g’ Output

    峰值“g”输出

  • 0-10V and 4-20mA Outputs for PLCs

    0-10V和4-20mA输出,直接供给PLC

  • Buffered Acceleration Output (for data collection)

    缓冲加速度传感器,直接供给数据采集产品

  • Displacement peak or peak to peak

    位移峰值或者峰间


技术参数

输入

100 mV/g constant current accelerometer

G(RMS)

600cpm - 300kcpm

频率范围

120cpm - 600kcpm (-3dB)

G峰值-峰值过滤

600cpm - 90kcpm or 210kcpm or 300kcpm (-3dB)

速度滤波器

600cpm to 60kcpm (-3dB) 2-pole Butterworth

位移过滤器

600cpm to 2.4kcpm (-3dB) 2-pole Butterworth

机械性能

外壳材料

塑料

安装

导轨式TS35

连接器

螺旋夹

导线尺寸

0.02 - 0.2英尺

重量

4.9 oz.

供电

电源输出

+24 V DC at 50 mA (HS-570供电模块)

输出1

0-10 VDC or 4-20 mA = velocity or g RMS. Set by internal link.

输出2

0-10 VDC or 4-20 mA = g pk or pk to pk or displacement, see ‘How To Order’ table.

Set by internal links

Output 3 (BNC)

Buffered accel. Output with DC bias voltage (nom. 12 VDC)

传感器连接指示

Transducer OK. Outputs 1 & 2 held at 0 V or 2 mA when in fault

环境

工作温度

32 to 131°F

安装类别(IEC664)

II

设备等级(IEC536)

III

EMC

EN61326-1:2013


订货型号

HS

535

X

X

X

X

X

X

X

X

X

主型号

模块系列

恒定电流-加速度

输入灵敏度

输出1测量

输出1范围

输出2测量

输出2范围

输出1&2

输出2过滤

输出3



A - Yes

1-100mV/g

V-RMS速度(mm/s)

1-100

A-g峰值-峰值

1-100

A-4-20mA, 4-20mA

A-300kcpm

1 - Buffered AC with Accel. DC Bias V



X - No

2-10mV/g

G-RMS加速度(g)

2-50

B-g峰值

2-50

B-0-10V, 0-10V

B-210kcpm

2 - Buffered AC only about 0V




3-30mV/g


3-25

D-位移峰值

3-25

C-4-20mA, 0-10V

C-90kcpm





4-50mV/g


4-10

F-位移峰值-峰值

4-10

D-0-10V, 4-20mA






5-250mV/g


1-100


B-5mm 峰值-峰值







6-500mV/g


2-50


C-20mm 峰值-峰值







7-1000mV/g









相关型号

HS-509

单通道,三模块振动监测模块


输入:加速度传感器(HS-420系列)的0-10V或4-20mA信号

供电:16 - 30 VDC (HS-570系列供电模块可供电)

三模:隔离输出(0-10V/4-20mA),延时继电器,报警继电器



HS-510

单通道,三模块带显示屏振动监测模块


输入: 0-10V或4-20mA信号,来自HS-420, HS-530, HS-535, HS-556或HS-557

供电:16 - 30 VDC (HS-570系列供电模块可供电)

三模:隔离输出(0-10V/4-20mA),延时继电器,报警继电器

LED显示屏:0-100   mm/sec, 0-100g和0-100 ºC



HS-530

单通道接口振动监测模块,带四输出


输入:100mV/g恒定电流,来自HS-100系列加速度传感器

供电:+24 V DC at 50 mA   (HS-570供电模块)

四输出:加速度(g),RMS速度(mm/s), 0-10V和AC

传感器连接状态指示功能



HS-531

单通道接口振动监测模块,带四输出


输入:100mV/g恒定电流,来自HS-100系列加速度传感器

供电:+24 V DC at 50 mA (HS-570供电模块)

四输出:加速度(g),RMS速度(mm/s), 0-10V和AC

传感器连接状态指示功能

风力发电应用



HS-535

单通道接口振动监测模块,三输出


输入:100mV/g恒定电流,将AC输入信号转换成多种输出信号

输出:0-10V或4-20mA(RMS速度,峰值“g”,AC“g”)

+24 V DC at 50 mA (HS-570供电模块)

传感器连接状态指示功能



HS-540

电流转电压、电压转电流转换器


0-10V 转4-20mA,或者4-20mA转0-10V

+24 V DC at 50 mA (HS-570供电模块)



HS-550

信号放大器,带加速度传感器供电功能


输入:100mV/g恒定电流,来自HS-100系列加速度传感器

供电:24 VDC ±10% @ 20 mA max.

输出:电压增益x1, x10, x100, 通过DIL开关可选

±9 V at x1 gain, ±5 V   at 10 gain, ±4.5 V at x100 gain



HS-551

加速度传感器供电模块


输入:100mV/g恒定电流,来自HS-100系列加速度传感器

BNC或端口输出AC mV/g信号



HS-556

单通道4-20mA振动模块


输入:100mV/g恒定电流,来自HS-100系列加速度传感器

输出:4-20mA(速度:0-25 mm/s   RMS,加速度:0-5 g RMS和AC输出)

供电:24 V DC @ 50 mA (from HS-570供电模块)



HS-557

双输出4-20mA振动模块


输入1:10mV/°C和PT100(HS-100T加速度传感器双输出温度信号)

输入2:100mV/g恒定电流(HS-100系列加速度传感器输出型号)

输出1:4-20mA(速度“0-25 mm/s rms”/加速度“0-5 g rms”)

输出2:4-20mA(温度32-212°F)

输出3:AC

供电:24 V DC @ 70 mA (from HS-570供电模块)



HS-570

供电模块,最大可同时给8个振动模块供


供电:HS-500系列振动监测模块

输入电压范围:85 - 264 Volts AC

输出电压:24 Volts DC

输出功率:20 Watts(HS-570-20),40 Watts(HS-570-40),60 Watts(HS-570-60)



HS-580

供电模块,带工业级外壳


给HS-500系列振动模块供电

IP66防护等级

风扇冷却
