张力仪是测量丝网受到拉力作用时其内部与固定丝网接触体之间的相互牵引力大小的仪器。张力仪有机械式和电子式两种，测量张力的单位用牛顿/厘米表示。张力也可以用相对数值来表示。厘米张力仪就是用相对数值表示张力的一种，是通过张力仪自身重量使丝网下沉的深度的数值(毫米)来计算，张力数值可从指示盘上直接得到，或者从控制盘上间接得到。张力仪有手工操作和机械操作两种。张力仪是检验丝网印版质量的重要的检测仪器。为保证得到制版要求的张力，在绷网过程中或绷网后都要使用张力仪测量。

德国Honigmann专注于卷材张力检测和张力控制有超过60年历史，是世界最大张力测量仪表生产商。旗下热销产品有皮带张力计136-3E适用于的长绳，电缆，栓绳，凯芙兰和玻璃纤维材料的张力测量。

5 Ranges, up 1000lbs / 500 Kg / 5000N

Honigmann 136-3E For Wire Diameters up to 0.590" / 15mm

Designed for measuring wires & cables that are anchored/fixed at both ends (closed system) such as guy wires, support cables, tethers and more. Also commonly used on Kevlar, fiberglass and other hi-strength materials when used in a similar applications.

The 136-3E employs a unique roller configuration and measurement scheme to minimize the deflection of the wire/cable. The total wrap angle of the material over the center sensing roller is 3 degrees eliminating all measurement errors!

No other company or product in the world can make this claim!

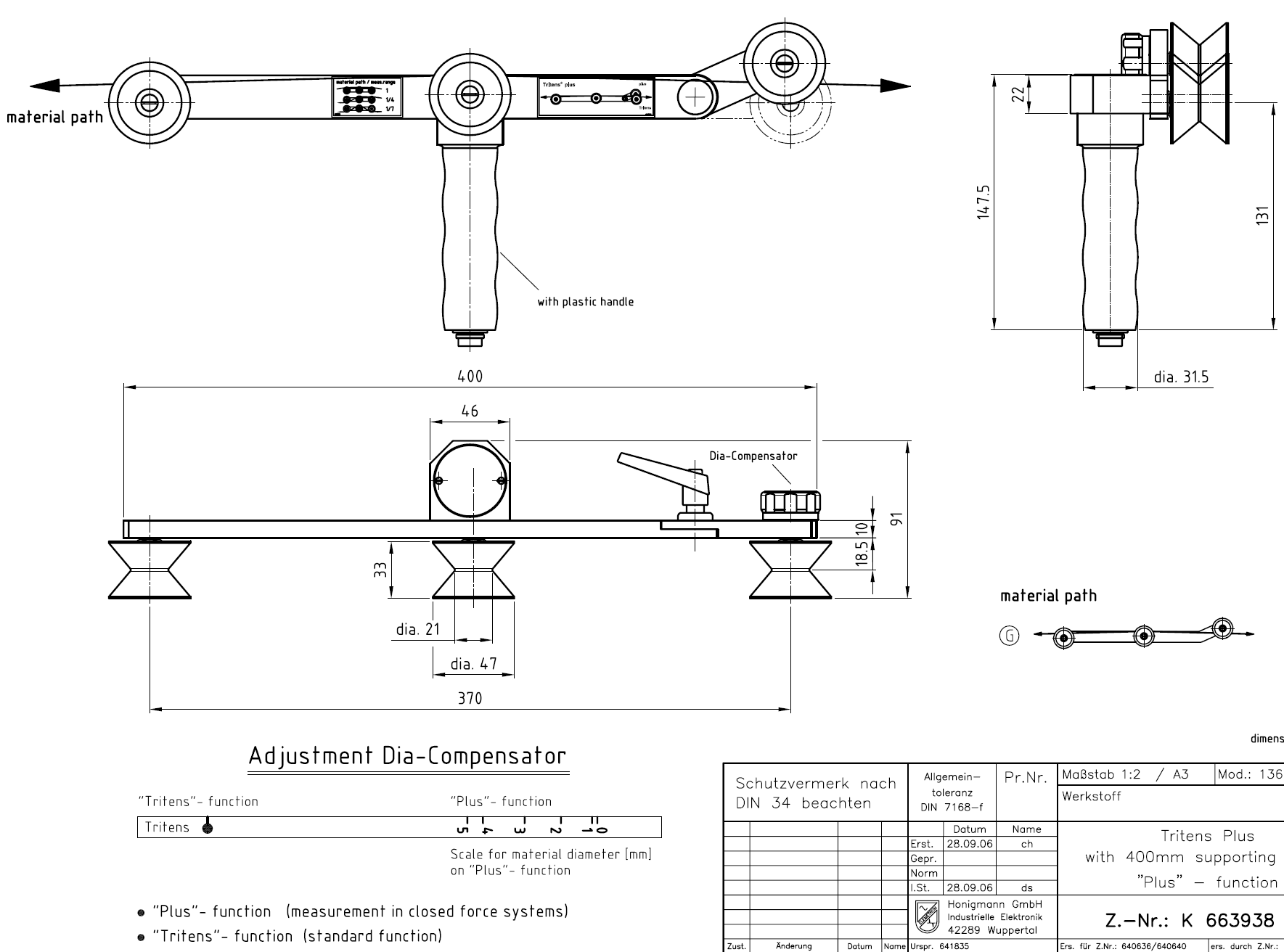

The material threading pattern (refer to illustration below) insures easy material acquisition and good tactile feedback allowing for excellent repeatability between measurements as well as between different users.

Precision ball-bearing rollers are used to eliminate any error caused by friction. These rollers are mounted on a large mounting plate properly spaced to remove the negative influence normally caused by the inherent rigidity of wires and cable up to 15 mm in diameter (0.590").
