The ASL load cell is a compression load cell based on single column technology particularly suitable for weighing applications on weighbridges. It is made of stainless steel and is compact, and sealed under prolonged immersion (IP 68).
The measurement principle on which the ASL load cell is based is the deformation of beams subjected to a compression force. It uses strain gauges arranged to form a Wheatstone bridge for conversion of a force into an electrical signal.
The Precia Molen ASL load cell is specially designed to be insensitive to eccentric loads, while remaining low-dimensioned.
应用：汽车衡，罐体称重和筒仓称重
防护等级IP68，可选防爆
不锈钢材质
CE和OIML R60认证

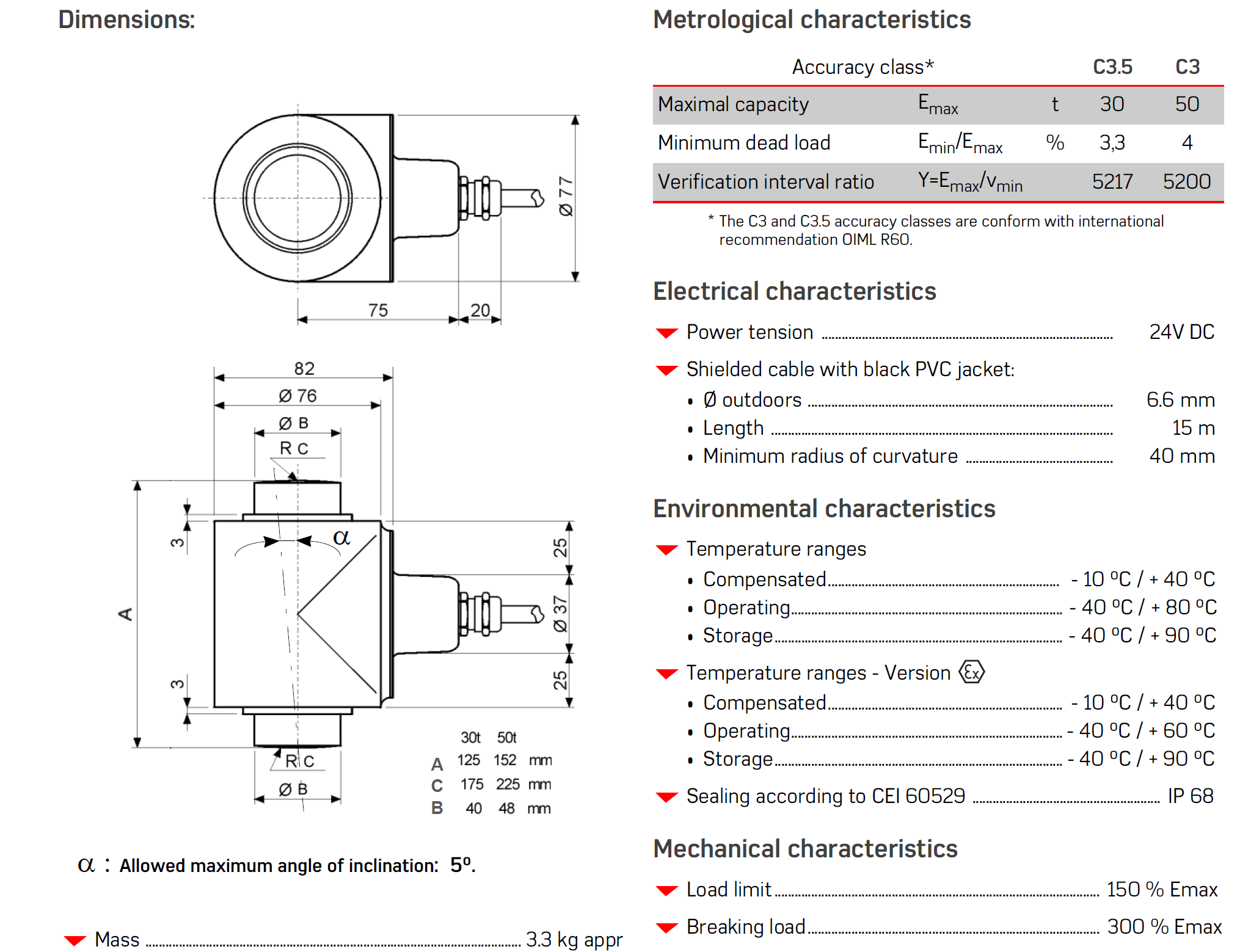

Metrological characteristics
Accuracy class* C3.5 C3
Maximal capacity Emax t 30 50
Minimum dead load Emin/Emax % 3,3 4
Verification interval ratio Y=Emax/vmin 5217 5200
* The C3 and C3.5 accuracy classes are conform with international
recommendation OIML R60.
Electrical characteristics
Power tension ......... ................... .... .............. 24V DC
Shielded cable with black PVC jacket:
Ø outdoors .......... ................... ... .................. 6.6 mm
Length ............... .................. ... .................. 15 m
Minimum radius of curvature ........ .... ... .................. 40 mm
Environmental characteristics
Temperature rangesCompens....................... ........ - 10 °C / + 40 °C
Operating................................................ - 40 °C / + 80 °C
Storage.................................................. - 40 °C / + 90 °C
Temperature ranges - Version EX
Compensated.... ....................... ................. - 10 °C / + 40 °C
Operating................................................ - 40 °C / + 60 °C
Storage.................................................. - 40 °C / + 90 °C
Sealing according to CEI 60529 .......................... IP 68
Mechanical characteristics
Load limit .............................................. 150 % Emax
Breaking load............................................ 300 % Emax
订货型号
ASL 30 t: 3 500 d (C3.5)
ASL 30 t Ex*: 3 500 d - C3.5
ASL 50 t: 3 000 d (C3)
ASL 50 t Ex*: 3 000 d - C3
