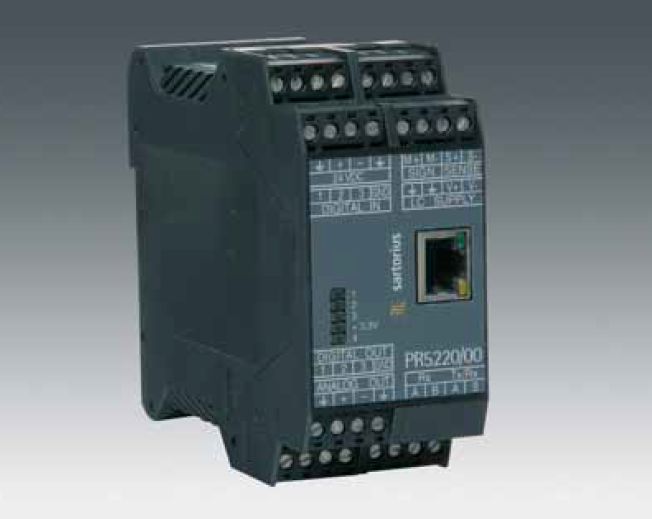

德国Sartorius PR5220是一款以太网变送器，内置信号转以太网采集模块和0-5V转以太网输入模块，电压型模拟量输入（量程为0-5V），采用满量程通道隔离、全差分输入设计。采用标准的Modbus TCP通讯协议，可以通过TCP/IP网络远程采集模拟量数据。
Series PR 5220 transmitters offer both reliability and ease-of-use for weighing recording via DMS weigh cells.
The Sartorius PR5220 Ethernet transmitter sets new standards in process instrumentation. The standard Ethernet TCP/IP interface enables easy transmission of information to superordinate systems. The new Ethernet Transmitter Sartorius PR 5220 provides an easy and reliable solution for weighing of process hopper scales with strain gauge load cells in process automation applications.
The PR5220 Transmitter sets new standards in Process automation. The standard Ethernet TCP| IP interface allows an easy integration into existing PC networks. Information can be transferred into supervisory systems with the integrated OPC-Server technology.
Ethernet TCP | IP Connection for Remote Control
Configuration via VNC
OPC Server
通过以太网TCP|IP连接PC到OPC服务器，也可通过浏览器配置
High accurate signal conversion with an internal resolution of 4.8 Mio. Counts
高精度信号转换，分辨率4.8 Mio. Counts
Modbus TCP for PC and PLC connections
通过Modbus TCP协议与PC和PLC连接
W&M approval with remote display for 10,000 e acc. to EN 45501|OIML R76
带远程显示W&M认证10,000 e，精度等级Class III
Calibration without weights (Smart Calibration)
智能校准，无需砝码
High accurate analogue output 0/4 –20 mA
高精度模拟量输出0/4 –20 mA
Serial Interface RS485/422 (connection of Sartorius digital scales)
串行接口：RS485/422
Supply voltage 24 VDC
供电电压：24VDC
Protection class IP20, DIN Rail-mounting
防护等级IP20，导轨式安装
Option: Profibus, DeviceNet, Profinet, Ethernet | IP
可选：Profibus, DeviceNet, Profinet, Ethernet | IP
外壳 Housing IP20 according to DIN 40050 Mounting on DIN Rail 35 mm according to DIN 46277 material: polyamide RoHS conform 尺寸 Version /00: 99 + 116 + 45 mm Versions /01, /04, /06, /07 99 + 116 + 68 mm 供电电压 24 VDC, +/-20% 功耗 6 W / 8 W (Versions /01, /04, /06, /07) 控制输出 Quantity: 3 opto-isolated output, passive, Voltage: max. 30 VDC Current: max. 30 mA Functions: Limits, weight status... 控制输入 Quantity: 3, opto-isolated input, passiv, Functions: zero setting, taring... Voltage: max. 30 VDC Current: max. 10 mA 输入输出 All I |O circuits fully galvanically isolated from sensor input and supply. 传感器连接 All strain gauge load cells; 6- or 4-wire connection 传感器供电 12 V, short-circuit proof. External load cell supply possible. 最小负载阻抗 min. 75 O e.g. 6 load cells with 600 O or 4 load cells with 350 O 测量原理 Measuring amplifier: Delta-Sigma converter Measuring time: min 5 ms - max. 1600 ms 输入范围 7.5 nV (appr. 4.8 Mio. div.) Usable resolution: 0.2 μV/d 输入信号 Measuring signal: 0 to 36 mV (for 100 % nominal load) | W&M认证 10,000 e class III acc. to EN 45501; according to. OIML R76, min. verification interval: 0.5 μV/e 线性度 < 0.002% 温度影响 Zero: TK0 m < 0.02 μV/K RTI Span: TKspan < +/- 2 ppm/K 传感器数字滤波器 4th order (low pass), Bessel, aperiodic or Butterworth 以太网接口 – Ethernet TCP|IP and Modbus TCP – Definition of an IP adress: – AutoIP – DHCP Server classification – manual entering of an IP adress – Automatic detection of signal transmission and corresponding change over (cross-over or patch cable) – Webservice via SOAP|UPnP (Simple Object Access Protocol) – Synchronal Modbus UDP 状态显示 Status LEDs to signal operation and error conditions. 模拟量输出 0/4 … 20 mA, internal resolution 16 bit, usable stepwidth: 0.5 μA max. load 500 O user configurable 串行接口 RS422/485 via screw terminals Protocol: Remote Display, SMA and Sartorius digital scales (XBPI–protocol) 电子连接 All electrical connections via modular screw terminals for 2.5 mm2 max. System Phoenix/COMBICON 环境条件 温度 W&M: –10°C to +40°C Operation: –10°C to +50°C Storage: –40°C to +70°C 重量 Version /00: Net: 0.29 kg Versions /01, /04, /06, /07 Net: 0.35 kg |

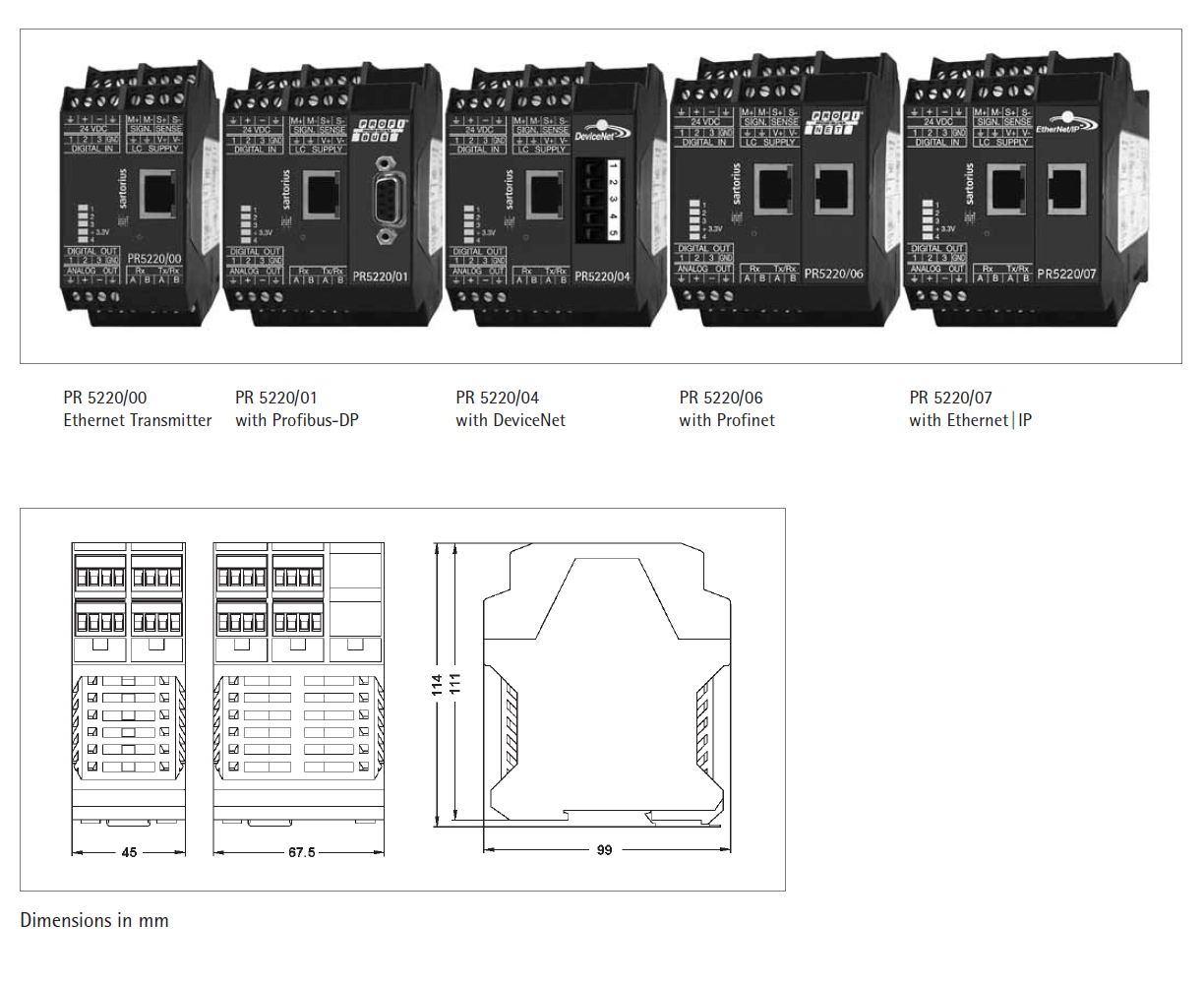

订货型号
PR 5220/00 Ethernet Transmitter, 24 VDC 9405 152 20001
PR 5220/01 Ethernet Transmitter with Profibus-DP, 24 VDC 9405 152 20011
PR 5220/04 Ethernet Transmitter with DeviceNet, 24 VDC 9405 152 20041
PR 5220/06 Ethernet Transmitter with ProfiNet 9405 152 20061
PR 5220/07 Ethernet Transmitter with EtherNet| IP 9405 152 20071
