TBS 全桥薄梁力传感器


TBS是一款全桥薄梁力传感器,在需要频繁进行小负荷测量时,薄梁称重传感器是最佳选择。Transducer Techniques TBS系列产品专用于测量医疗仪器、家用电器、过程控制、机器人、汽车以及其它高容量应用中的众多不同参数。其专门开发的综合应变片包括所有平衡、补偿以及传导元件,且被锻压成薄梁,可提供卓越的稳定性和可靠性。

TBS SERIES CAPACITY RANGES: .25, .50, 1, 2, 5, 10, 20, 40 LBS.

The TBS Series thin beam sensors are exceptionally suited for small load measurements. They are designed to measure many different parameters found in medical instrumentation, home appliances, process control, robotics, automotive and many other high volume applicatons. A specially developed integrated strain gage includes all balancing, compensating and conductive elements and is laminated to the beam to provide excellent stability and reliability.


  • 测量力或位移

  • 具有热匹配、积极主动的 全桥测量系统,可实现最佳温度追踪


Rated Output (R.O.): 2mV/V ±20%

Combined Error: 0.25% full scale

Zero Balance: ±0.3 mV/V

Compensated Temp. Range: 20° to 120°F

Temperature Effects: Zero Balance 0.02% of

FS/°F;Output 0.02%/°F

Resistance: (Input and output)

1200 ohms ±300 ohms

Insulation Resistance: 1000@ 50 VDC

Excitation Voltage: 10 VDC

Seal: Urethane coated

Safe Overload: 150% FS

Full Scale Deflection: 0.010 to 0.0500

Lead Wire: 9" shielded PVC four

conductor 30 AWG

Material: 301 SS(berryllium

copper 1/4 and 1/2 lb.

units

Deflection Inches: .025


订货型号

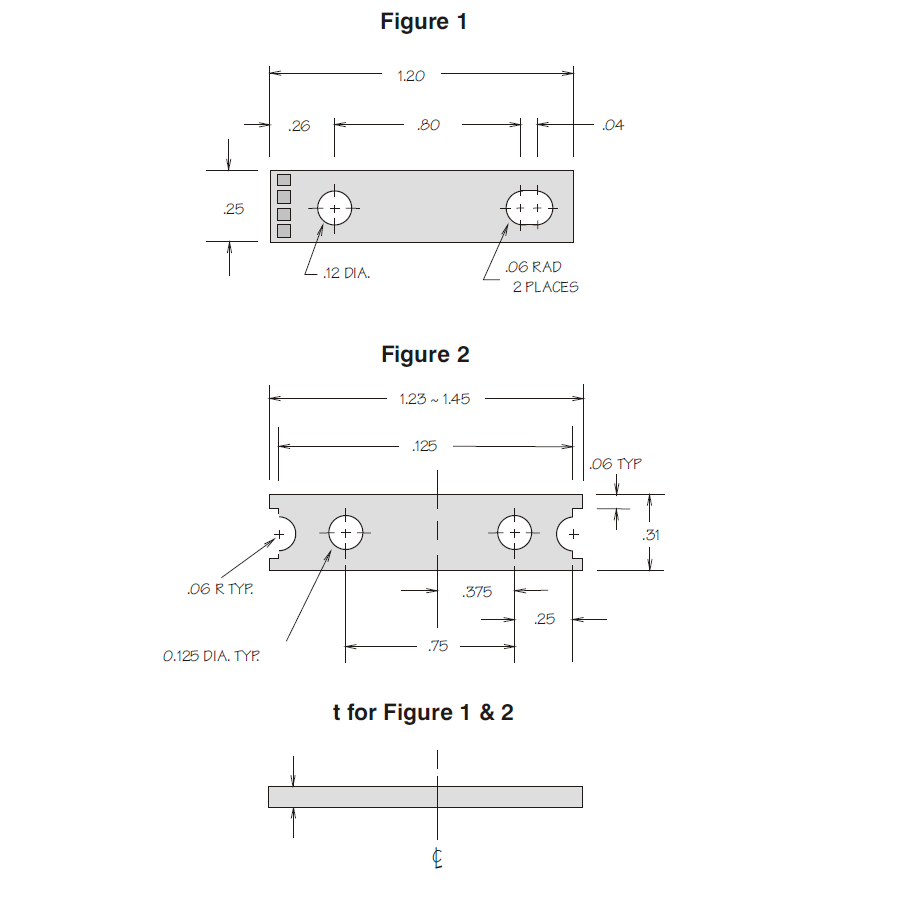

TBS-.25 .25 0.006 Fig. 1

TBS-.50 .50 0.009 Fig. 1

TBS-1 1 0.011 Fig. 1

TBS-2 2 0.015 Fig. 1

TBS-5 5 0.022 Fig. 1

TBS-10 10 0.031 Fig. 2

TBS-20 20 0.044 Fig. 2

TBS-40 40 0.063 Fig. 2



配件

MODEL MOUNTING

TBS-MK-1 for TBS-.25 - TBS-5

TBS-MK-2 for TBS-10 - TBS-40


相关型号

SLB

LBO

LBC

LBM
