TMO-2 放大器


传感器信号放大器是将传感器输出信号进行精密放大,线路内部进行稳压、恒流供桥、电压电流转换,阻抗适配,线性补偿,温度补偿等,将力学量转换成标准电流、电压信号输出。



美国Transducer Techniques TMO-2集成放大器和信号调理仪功能,用于信号源和读出设备之间的信号调理器件,如衰减器、前置放大器、电荷放大器以及对传感器或放大器进行非线性补偿的电平转换器件。



Transducer TMO-2传感器模块是一款差分放大器/信号调节器,价格好,性价比高。并提供激励,结算和满刻度校准功能。

The TMO-2 Transducer Modules is a complete differential amplifier/signal conditioners with self contained power. The units provide excitation, balance and span adjustment via precision 10 turn pots, and shunt calibration necessary to couple a user supplied bridge type transducer to an indicating instrument. Full scale output is specified at plus or minus 10 VDC. The TMO-2 provides a floating shunt calibration circuit which applies calibration at the transducer, thereby eliminating errors due to line losses. The excitation supply incorporates a Wagner Ground to greatly improve Common Mode Rejection. The factory set bandwidth of the module is narrow to improve stability for applications such as weighing scales. The removal of a single capacitor will increase the frequency response DC to 60K Hz for dynamic data applications.


详情请联系我们

SIGNAL CONDITIONER

Type: Full external bridge

Sensor Resistance: 120 to 1000 ohm

Balance Range: ±30% of output (350 ohm

bridge)

Shunt Calibration: Single point momentary

Calibration Value: 1 mV/V resistor provided

BRIDGE AMPLIFIER

Type: Bipolar differential

Gain Range: 67 to 737

Input Sensitivity: 1 mV/V to 10 mV/V

Input Impedance: 10 Megohm minimum

Output Voltage: 0 to 10 Volts (2 mV/Vspecs)

Output Current: 0 to 10 mA

Output Impedance: 75 ohm

CMR: 110 db minimum, DC to 60 Hz

Noise and Ripple: Less than 3 mVP-P

Nonlinearity: .01% maximum

Accuracy: ± .05% of FS

Type: Low pass, 6 db, octave

Frequency: 16 Hz standard (160 and

1600 Hz available)

EXCITATION SUPPLY

Type: Constant voltage

Output: 8 VDC ± .25V

Output Current: 0 to 120 mA

Current Limit: Factory set at 65 mA

Load Regulation: .1% maximum for 100%

load change

GENERAL

Balance Stability: .2% for 8 hours

Gain Stability: .01% for 8 hours

Tempco: .02% full scale/°C

Isolation: 1000 Megohm, output to AC

Operating Temp: 0 to 50°C

Size: 3 x 3.75 x 6.25 inches

Weight: Less than 2 lb approx.

Fuse: 250 mA internal

Power: 115 VAC 10% 60 Hz 3 Watts




订货型号

Order Code Model Capacity Range Calibration Description

TM0-2 N/A 120 VAC Conditioner Module 16 Hz Filter

TM0-2-160 N/A 120 VAC Conditioner Module 160 Hz Filter

TM0-2-1600 N/A 120 VAC Conditioner Module 1600 Hz Filter

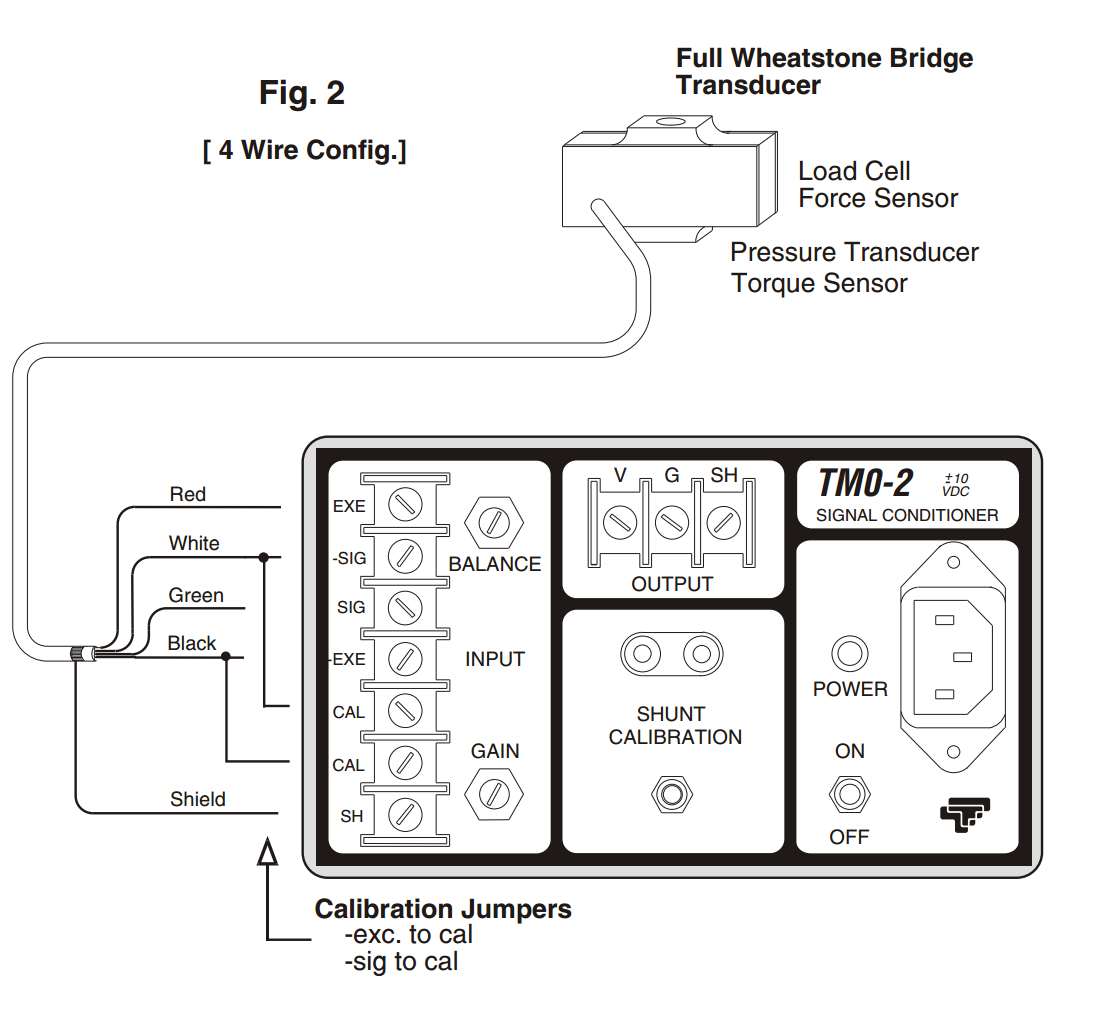

TMO-2 01.png
