Check-Line FH-7200 - Basic Model
Check-Line FH-7400 - Enhanced display and statistics
Measuring Ranges
FH 4: 0.00 - 0.16" / 0 - 4mm
FH 10: 0.00" - 0.39" / 0 - 10mm

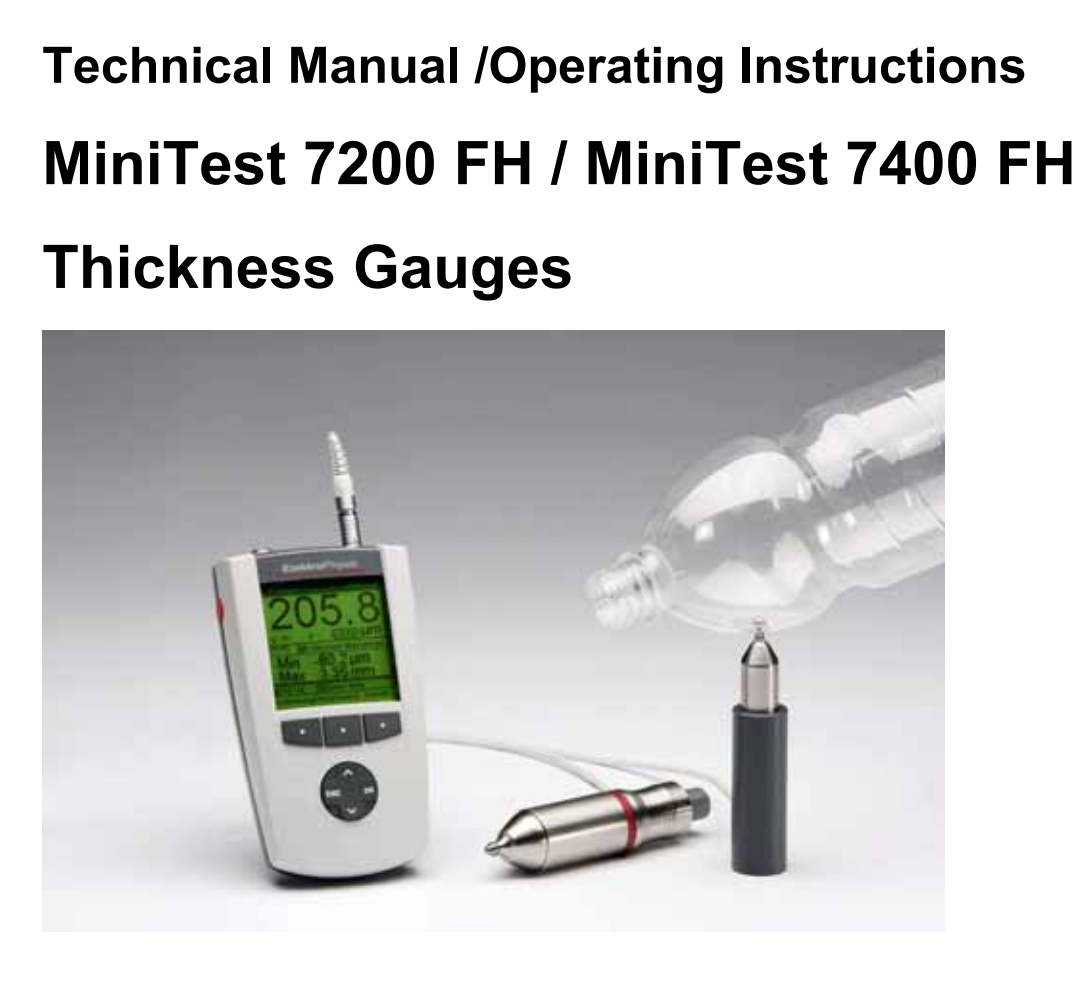

The Check-Line FH-7200 & FH-7400 is a portable thickness measuring device that offers the capability to precisely measure materials up to 10 mm thick. The small size and portability of the device enables it to be operated in production areas and quality laboratories. The FH Series provides easy, non-destructive and highly accurate thickness measurement on all types of non-ferrous products, regardless of their size, shape, and material.
It is ideal for applications where accurate measurement of sharp corners, small radii and/or complex shapes are required.
Two Models
Model Checkline FH-7200 offers measurement capabilities including real-time thickness measurement, display of minimum and maximum readings, an offset mode, and automatic storage of up to 100,000 values.
Model Checkline FH-7400 offers the same capabilities as the MiniTest 7200 FH plus statistical graphing, real time trend, data base with up to 200 batches and increased automatic storage of up to 240,000 values. e.g. 1200 per batch.
Two Probes to Choose From
In order to maximize the accuracy of readings, two easily interchangeable probes with a hardened probe tip and a variety of ball sizes are available to cover thickness ranges from 0 to 4 mm (FH 4) and 0 to 10 mm (FH 10).
Ideal for Bottles, Aluminum Cans, Glass and Plastic Components with Complex Shapes
High precision target balls for reproducible measurements
Data capture up to 20 data points per second
Sensor-integrated digital signal processing
Multi-point calibration up to 5 points
Large, easy-to-read display
Minimum and maximum readings
Menu-controlled user interface
Context-sensitive on-line help
SPC capabilities
FH-10-24-CALKIT extends the calibration of the FH10 probe to read wall thickness values up to 24 mm and includes 20 pcs. 4mm balls, 20 pcs 6mm balls and one 18mm precision shim.
Measuring Range | 0-1.5mm with 1.5mm ball |
Measuring Range | 0-2.5mm with 2.5mm ball |
Resolution | 0-1.5mm: ±(3 µm + 1% of reading) |
Resolution | 0-2.5mm: ±(5 µm + 1% of reading) |
Low Range Resolution | FH4: 0.1 µm |
Repeatability | |
Measuring Principle | Magnetostatic |
Logging Rate | 1, 2, 5, 10, 20 readings per second (selectable) |
Data Memory | FH7200: 100,000 values |
Calibration Modes | Factory, Zero, Zero + up to 4 points |
Measuring Units | Metric: µm, mm |
Statistical Charting | Numeric, trend, and histogram (with MiniTest 7400 FH only) |
Interfaces | RS232 TTL + IrDA 1.0 |
Models | MiniTest 7200 FH |
Operating temperature | -10 °C to +60°C (Storage temperature: -20°C to +80°C) |
Dimensions | 153 mm x 89 mm x 32 mm |
Weight | 310 grams |
Power supply | 4 x AA batteries, or optional AC adapter |
订货清单
Supplied as a complete kit including, Gauge, Magnetic Probe, target balls 2.5 mm(100 pcs), 4 mm (50 pcs), 6 mm (25 pcs), Multi-language Operating Instructions, 4 AA batteries, Protective Rubber Shell with stand and belt clip, and Magnetic Screw Driver in a hard plastic carrying case.
配件
FH-10-24-CALKIT Calibration Kit needed to extend the range of the FH10 Sensor up to 24 mm
80-900-0005 Optional AC-Adapter for FH7200/FH7400
80-901-1900 Foot switch for FH Series thickness gauge
订货型号
FH7200-4 FH7200-4 Thin Wall Thickness Gauge Complete Kit with FH4 Probe
FH7200-10 FH7200-10 Thin Wall Thickness Gauge Complete Kit with FH10 Probe
FH7400-4 FH7400-4 Thin Wall Thickness Gauge Complete Kit with FH4 Probe, Enhanced Statistics Model
FH7400-10 FH7400-10 Thin Wall Thickness Gauge Complete Kit with FH10 Probe, Enhanced Statistics Model
