GEK 扭力扳手


Digital Ratchet Torque Wrenches have a forged steel ratchet head and feature a unique power sensor in the ergonomic handle which accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position, unlike other loading point sensitive wrenches.

Digital Ratchet Torque Wrenches have a forged steel ratchet head and feature a unique power sensor in the ergonomic handle which accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position, unlike other loading point sensitive wrenches. Checkline GEK



Check-Line GEK Digital Adjustable Torque Wrenches expand torque applications to places where a socket wrench cannot work. They feature forged steel jaws and a unique power sensor in the handle which accurately detects and analyzes load applied to the grip, regardless of hand position and specially designed jaws that maintain a constant working length whether open or closed, to enable more precise torque measurement.



These torque wrenches measure in peak mode, peak with auto zero reset, and real time. Five programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an intermittent signal at 90% and a continuous signal at 100% of the preset torque value using LEDand audible indicators that enable users to tighten to within 10% of a preset torque value. Pass/Fail mode counts the number of fasteners tightened within programmed high and low torque limits. Selectable units of lbf-in, lbf-ft, kgf-m, and N-m. Uses a lithium coin battery, CR2354.


  • High accuracy ±1.5% F.S. both CW and CCW directions

  • Five programmable torque presets ideal for frequent operations.

  • Selectable units, lbf-in, lbf-ft, kgf-cm, N-m

  • ISO-6789 Compliant

  • Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts

  • Peak, peak with auto zero reset and Real Time modes

  • Calibration certificate traceable to NIST and carrying case included


Accuracy

±1.5% F.S.

Measuring   direction

CW and CCW

Measuring unit

Selectable lbf-in, lbf-ft, kgf-m, N-m

Data Memory

5 (storable Target torque values), 1   (Pass/Fail Mode)

Auto Shut OFF

Power automatically turns off after 2   minutes of non-use

Battery

Lithium coin battery CR2354

Battery Life

Approx. 2 months (100 usages per day)


配件

CR2354  Replacement Battery $2.00

BAE23   Quick Adaper - 1/4" sq. - 3/8" sq.

BAE34   Quick Adaper - 3/8" sq. - 1/2" sq.

BE2-Q   Quick Spinner - 1/4" sq. - 1/4" sq.

BE3-Q   Quick Spinner - 3/8" sq. - 3/8" sq.

BE4-Q   Quick Spinner - 1/2" sq. - 1/2" sq.



订货型号

Model

lbf-in

lbf-ft

kgf-m

N-m

Drive

GEK030-R2E

13.4 - 265.4

1.12 - 22.12

0.160 - 3.060

1.50 - 30.00

1/4"

GEK030-C3E

13.4 - 265.4

1.12 - 22.12

0.160 - 3.060

1.50 - 30.00

3/8"

GEK060-R3E

13.5 - 531.0

1.15 - 44.25

0.160 - 6.120

1.50 - 60.00

3/8"

GEK085-R3E

19.0 - 752.0

1.60 - 62.70

0.21 - 8.66

2.0 - 85.0

3/8"

GEK135-R4E

28 - 1195

2.3 - 99.5

0.32 - 13.76

3.1 - 135.0

1/2"

GEK200-R4E

46 - 1770

3.8 - 147.4

0.55 - 20.40

5.2 - 200.0

1/2"

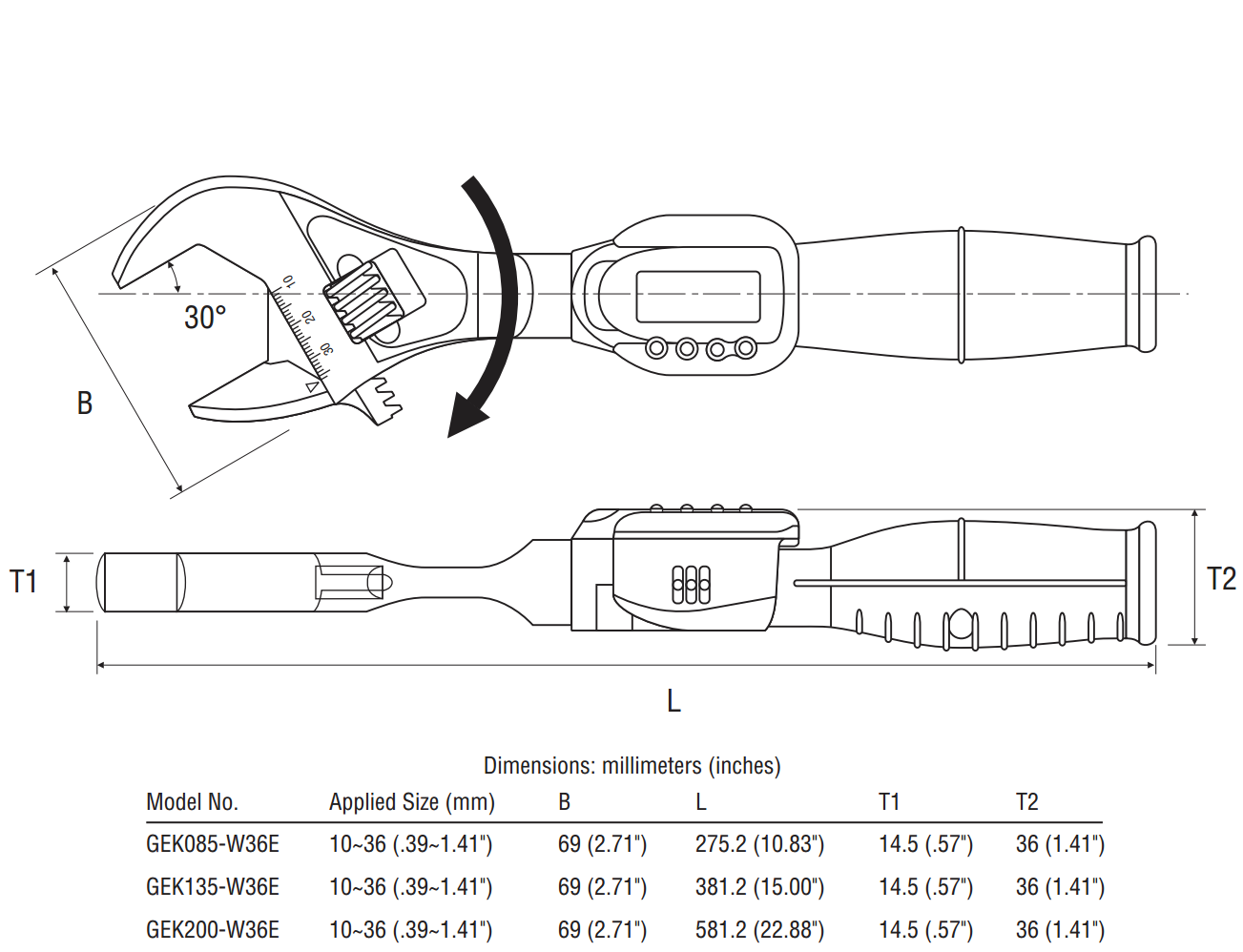

Model

lbf-in

lbf-ft

kgf-m

N-m

GEK085-W36E

19.0 - 752.0

1.60 - 62.70

0.21 - 8.66

2.0 - 85.0

GEK135-W36E

28 - 1195

2.3 - 99.5

0.32 - 13.76

3.1 - 135.0

GEK200-W36E

46 - 1770

3.8 - 147.4

0.55 - 20.40

5.2 - 200.0


相关型号

DTW

DTL-100i

DIW

ILTT

ETW
