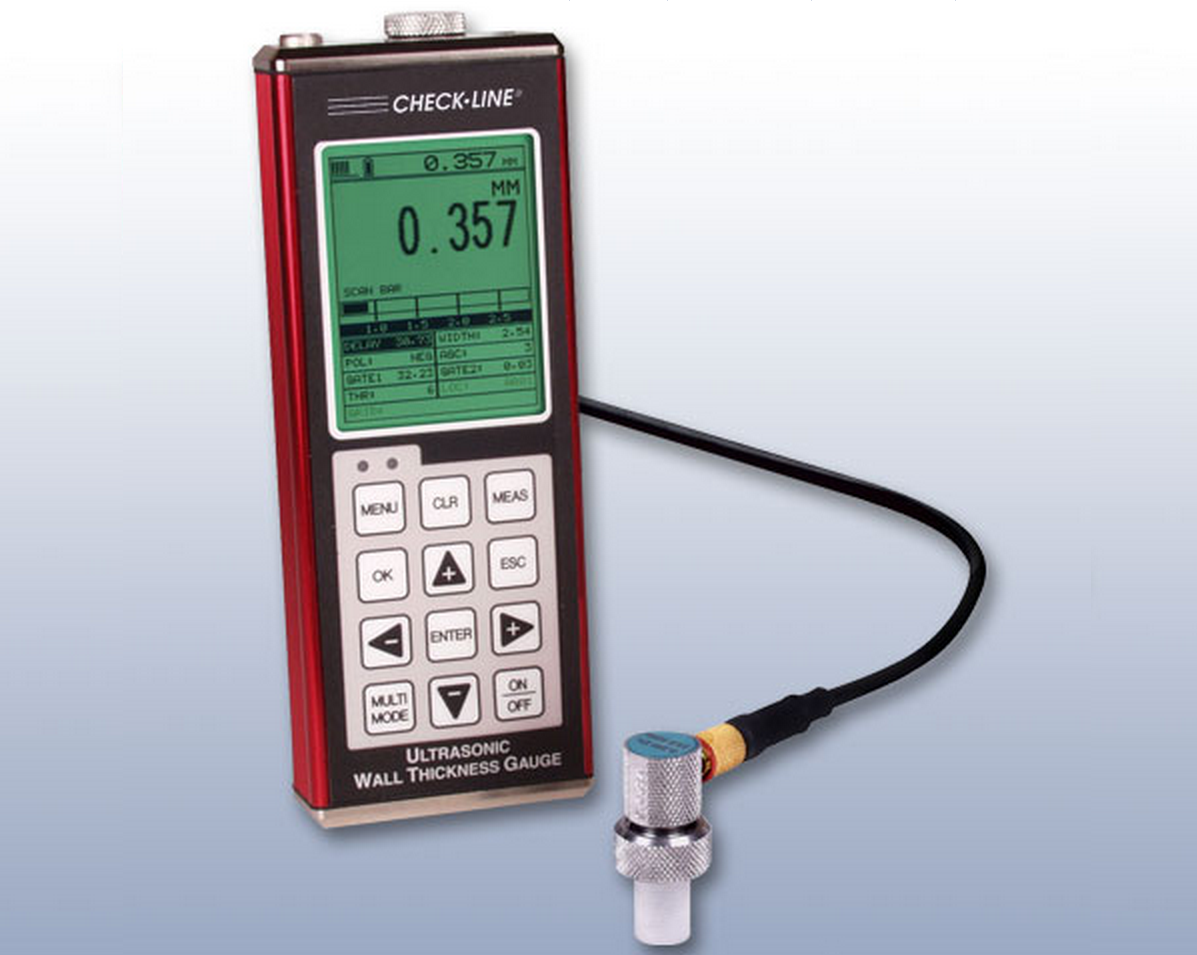

TI-PVX 高精度轴向扫描超声波测厚仪


The new TI-PVX Precision Ultrasonic Wall thickness gauge provides the

The new TI-PVX Precision Ultrasonic Wall thickness gauge provides the flexibility necessary for both high resolution and penetration requirements.

新型TI-PVX超声波测厚仪能灵活地满足高分辨率和高穿透需求。



It's ability to use a variety of single element transducers for specific applications: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications) makes it the perfect flexible tool for very precise and delicate measurements. The adjustable resolution settings add to the PVX’s flexibility.

其配备的一系列单冲量探头可满足应对各种特殊运用。标准延时线型(配备丙烯和石墨尖端,测量金属和薄塑料件),线束延时线型(可测薄金属件难达到区域),接触式探头(一系列其他运用)。测量灵活、精准。



The selectable viewing options provide the user with additional flexibility during operation: (RF waveform, +/- Rectified waveform, and Large Digits with Scan Bar.

The time based B-Scan feature displays a cross section of the test material. Displays the profile of the opposite surface of the material.

The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned.

为了更好地满足客户需求,TI-PVX给客户带来更多灵活性操作:无线电频率波形图显示,+/-正负整流波形图和数字条形扫描。横向扫描功能不仅能显示被测件的截面数据,还是能显示其对表面数据。测厚仪高速扫描特性使得测厚仪能以每秒32次测量速度进行测量。


  • 硬件自动增益控制功能,进行多重回波和通涂料测量

  • 多通道校准:单点,两点等。

  • 16个出厂自带设置和48个用户自定义设置,用户可根据不同的运用编辑不同设置。

  • 自带字母数字记录器,满足客户记录需求,提高通用性。

  • 高速扫描特性能扩大客户扫描范围,显示最精细的读数。

  • 自动发现功能实时定位探测点,调整显示设置。

  • 自带PC软件,能将测量数据传送的PC电脑上。

  • 0.01mm和0.001mm分辨率自选

  • 自带声响和报警功能

  • 1/4" 15MHz延迟线探头

  • CE认证

  • 两年质保

  • 自带校准证书


测量范围:

界面反射法: 测钢0.05 1.0 in (1.27mm -   25.4mm). 测塑料> .005in. (127mm).
  回波至回波模式:Steel .006in -.500in (.15mm - 12.7mm).
  脉冲反射波法: 测钢.040in - 10.0in (1mm - 254mm). 测塑料 >  .01

分辨率:

(可选) +/-   .001in (0.01 mm), or +/- .0001in - (.001mm).

速度范围:

.0492 to .3936 in./ms
  1250 to 9999 meters/sec

单位:

英语/公制

内存:

16 M 非易失性内存

数据采集:

12,000 readings and waveforms (alpha   numeric storage).

显示:

1/8 in. VGA grayscale display

设置:

16 factory and 48 user-defined setups.

显示:

A-Scan Rectified +/- (half wave view) RF (full waveform view)

  B-Scan Time based cross   section view. Display speed of 15 secs per screen.

  Large Digits Standard   thickness view. Digit Height: 0.400 in (10mm).
  <br</br

电源:

Three 1.5V alkaline or 1.2V NiCad AA   cells

电池:

Typically operates for 150 hours on   alkaline and 100 hours on NiCad

关机:

Auto power off if idle 5 min.

运行温度:

-14° to 140°F (-10° to 60°C).

尺寸:

2.5 W x 6.5 H x 1.24 D inches (63.5 W x   165 H x 31.5 D mm).

重量:

0.4 kg (0.9 lbs )

质保:

测厚仪: 2年
探头:  90天



订货清单

The TI-PVX is supplied as a complete kit with the gauge, 3/16" 10Mhz transducer, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable, Serial to USB adapter and Operating Instruction Manual - all in a foam-fitted carrying case.

标配:TI-PVX超声波测厚仪,3/16" 10Mhz的笔式探头,藕合液(4 oz.),2AA电池,校准报告,数据传输软件,串行输出电缆线,串口转USB转接器和操作说明书,便携式仪表箱。



配件

CF12    Coupling Fluid - 12oz

TICC-MVX    Protective Holder for TI-MVX, TI-PVX and TI-MMX-SDL

USB-RS232-ADAP  RS232 to USB Adapter

X-152-0000  1/16" Dia. x .450 L Delay Tip (Pencil)

X-752-0000  1/8" Dia. x .450 L Delay Tip (Pencil)

T-481-4507  Pencil Probe for TI-PVX

T-681-4507  90° Pencil Probe for TI-PVX

T-402-5507  1/4" diameter, 15 MHz delay line transducer with cable, 1/2" and 3/8" length delay line tips

T-402-2805  FCR-2550 Single element contact transducer, 1/4" 5 MHz, for TI-PVX, without cable

T-404-2805  FCR-5050 Single element contact transducer, 1/2" 5 MHz for TI-PVX, without cable

X-231-0000  1/4" x 3/8" Length Delay Line tip for use with T-402-5507 transducer

X-241-0000  1/4" x 1/2" Length Delay Line tip for use with T-402-5507 transducer

X-633-0000  1/4" x 3/8" Graphite Tip Delay Line tip for use with T-402-5507 transducer

X-532-0000  3/16" x 3/8" Cone Tip Delay Line

X-132-0000  1/8" x 3/8" Cone Tip Delay Line

X-533-0000  3/16" x 3/8" Graphite Cone Tip Delay Line

BATT-RC4AA-WC   4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit



订货型号

TI-PVX TI-PVX Thickness Gauge includes 10MHz Pencil Probe

TI-PVX-5507    TI-PVX Gauge supplied with 1/4" 15MHz Delay Line Probe instead of Pencil Probe

TI-PVX-2550    TI-PVX Gauge supplied with 1/4" 5MHz Delay Line Probe instead of Pencil Probe


超声波测厚仪TI-PVX常用探头选择

型号

频率

探头直径

测量范围

说明

PT-402-5507

15MHz

φ6.3mm

0.15~25.4mm

延迟探头

PT-402-2805

5MHz

φ6.3mm

0.5~150mm

接触探头

PT-404-2805

5MHz

φ12.7mm

1.9~254mm

接触探头

PT-481-4507

10MHz

φ1.6mm

0.13~2.4mm(塑料)

笔式探头
