Offering the ultimate protection for important load cell output, the RICELAKE JB8SPT TuffSeal™ Signal Trim Junction Box with transient protection, is the optimal choice for truck, livestock, and railroad scales susceptible to potentially destructive outdoor elements. The TuffSeal JB8SP Fiberglass Reinforced Polyester NEMA 4X enclosure effectively protects sensitive circuit boards and allows easy access for signal trimming individually or by section. The included transient board protects circuitry from devastating power surges.
Fiberglass Reinforced Polyester (FRP) (NEMA 4X) enclosure with stainless steel cover screws
Shunt jumpers to disable unused load cell parts
PreVent® breather vent
Removable load cell connectors
Conformal coated circuit board
Section and individual cell trim capability
Field replaceable transient protection
(1) coupling, 1/2 NPT cord grip to 3/4" NPT conduit fitting for homerun cable
Number of cells:
2, 4, 6, or 8 single load cells (even number only)
Expansion port
应用
Cable Fittings:
(9) 3/8 in NPT 0.157 in-0.314 in
(2) 1/2 in NPT 0.272 in-0.472 in
(1) PreVent breather unit
Enclosure:
Molded FRP, NEMA Type 4X enclosure with overlapping solid cover,
stainless steel screws
Connectors:
Pluggable screw type, 12-28 AWG
Trimming:
Individual cell trim
Potentiometers:
100K ohm, 25 turn cermet

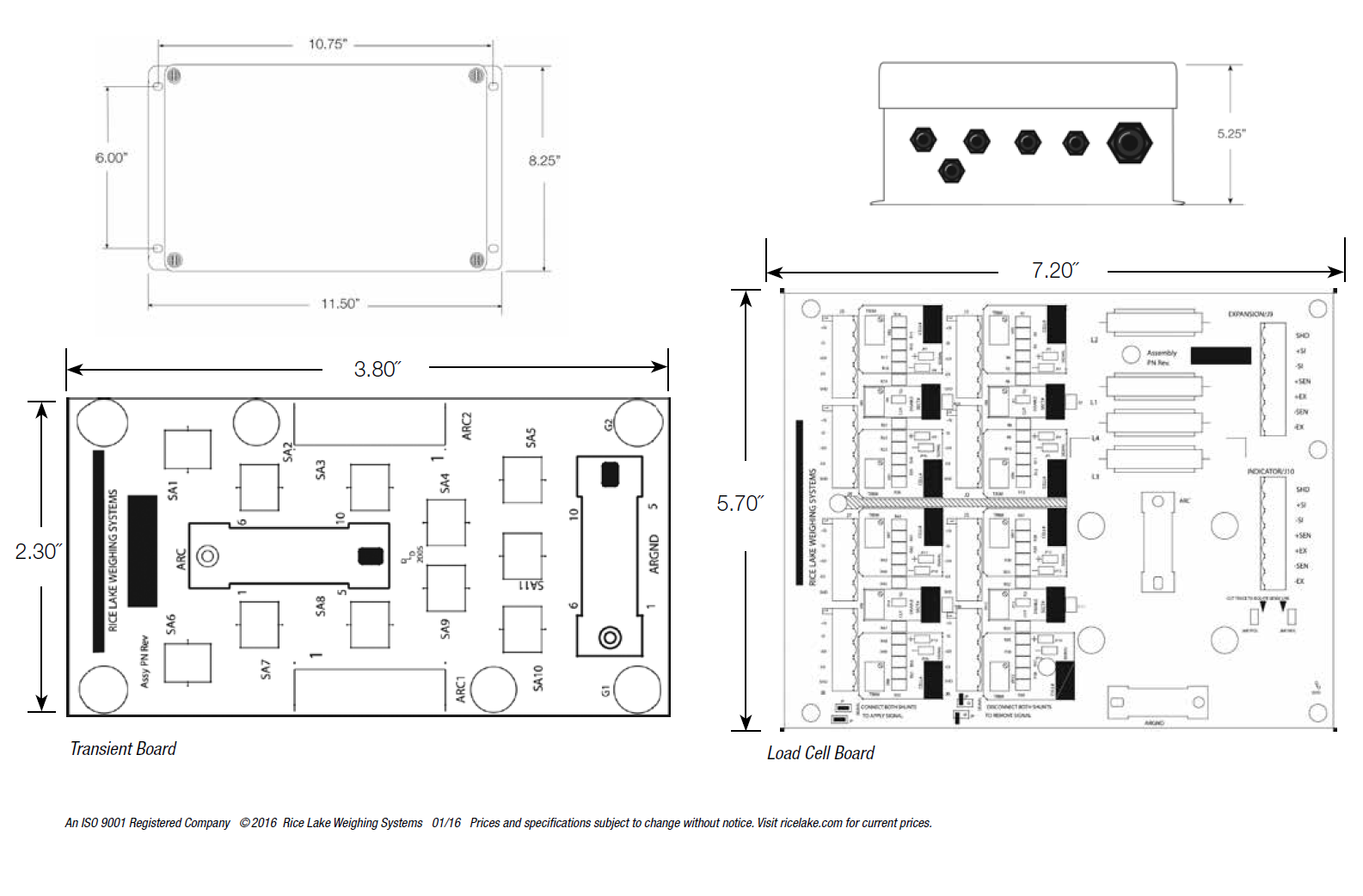

Circuit Board:
5.7 x 7.2 in with conformal coating
Warranty:
One-year warranty
订货型号
配件
92734 | Assembly,Coupling & Cap Bonded, 1/2 in NPT Grip Cap To 92574 Coupling |
92735 | Assembly, Coupling & Cap bonded, 3/8in NPT cap to coupling 92575 |
