Transducer Techniques SB0 Series load cells are offered for tension or compression applications for precision weight and force measurements. Applications might include conveyor scales, check weighers, and counting scales.
SB0系列称重传感器可进行高精度拉压称重和压力测量，一般用在皮带秤，检测秤和计数秤上。
Transducer SB0 Series 50 through 1,000 lbs. is anodized aluminum and 2,000 through 5,000 lbs. ranges are made from 17-4ph heat treated stainless steel. The sensing element incorporates bonded foil strain gages of the highest quality and is sealed for protection against most industrial environments.
50-1000lbs量程的为阳极电镀铝材质，2000lbs到5000lbs量程上的为17-4ph不锈钢材质。集成质量最好的应变计，其密封技术可应对绝大多数的工业工作环境。
详情请联系我们
额定输出 | 3.0 mV/V nominal |
非线性 | 0.05% of R.O. |
磁滞 | 0.03% of R.O. |
不可重复性 | 0.02% of R.O. |
零点平衡 | 1.0% of R.O. |
补偿温度范围 | 15° to 115°F (-10℃-46℃) |
安全温度范围 | -65° to 200°F (19℃- 93℃) |
灵敏度温漂 | 0.005% of Load/°F |
零点温漂 | 0.005% of R.O./°F |
终端电阻 | 350 ohms nominal |
激励电压 | 10 VDC |
安全载荷 | 150% of R.O. |

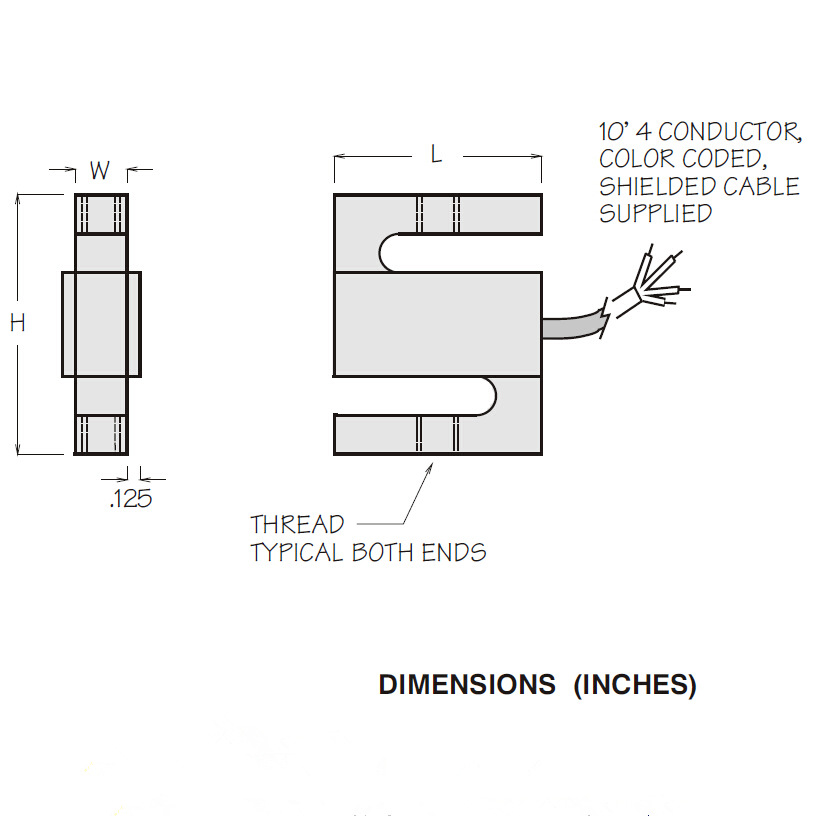

订货型号
型号 | 量程 （磅） | 尺寸（英尺） | |||
L | W | H | 螺纹 | ||
SB0-50 | 50 | 2.0 | 0.5 | 2.5 | 3/8-24 |
SB0-100 | 100 | 2.0 | 0.5 | 2.5 | 3/8-24 |
SB0-200 | 200 | 2.0 | 0.5 | 2.5 | 3/8-24 |
SB0-300 | 300 | 2.0 | 0.5 | 2.5 | 3/8-24 |
SB0-500 | 500 | 2.0 | 1.0 | 3.0 | 1/2-20 |
SB0-750 | 750 | 2.0 | 1.0 | 3.0 | 1/2-20 |
SB0-1K | 1000 | 2.0 | 1.0 | 3.0 | 1/2-20 |
SB0-2K | 2000 | 2.0 | 1.0 | 3.0 | 1/2-20 |
SB0-3K | 3000 | 2.0 | 1.0 | 3.0 | 1/2-20 |
SB0-5K | 5000 | 2.5 | 1.5 | 3.5 | 5/8-18 |
选配
配件型号 | 配件名称 |
TC-CAL | 张力校准证书 |
CAL-TEDS | 即插即用式连接头 |
